InstrumentsInstrument cowl - up to 2000my

Refit

  1. Position instrument pack to fascia and connect multiplugs.
  2. Position instrument pack and secure with screws.
  3. Fit instrument cowl. See this section.

INSTRUMENT COWL - UP TO 2000MY

Service repair no - 88.20.02

Remove

  1. Remove steering column nacelle. See STEERING, Repairs.

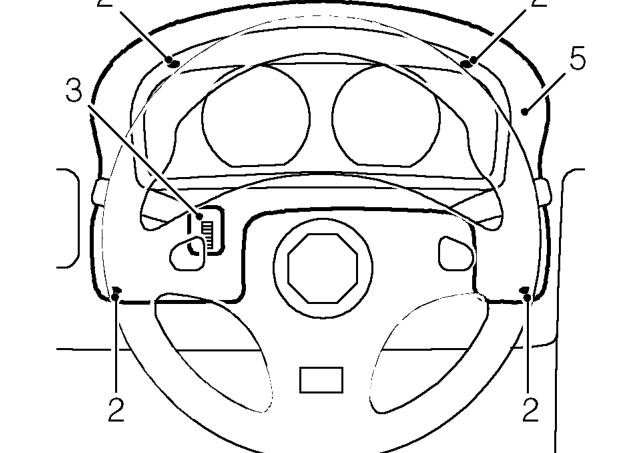

Instrument cowl - up to 2000my – Remove steering column nacelle. See STEERING, Repairs.
  1. Remove 4 screws securing instrument cowl to fascia.
  2. Release cowl and disconnect multiplug from panel lamp dimmer.
  3. Release dimmer from cowl.
  4. Remove cowl.

Refit

  1. Secure dimmer to cowl.
  2. Position cowl and connect multiplug.
  3. Position cowl to fascia and secure with screws.
  4. Fit steering column nacelle. See STEERING, Repairs.
