InstrumentsInstrument cowl - 2000my on

INSTRUMENT COWL - 2000MY ON

Service repair no - 88.20.02

Remove

  1. Remove steering column nacelle. See STEERING, Repairs.
Instrument cowl - 2000my on – Remove steering column nacelle. See STEERING, Repairs.
  1. Remove 4 screws securing instrument cowl to fascia.
  2. Release cowl from fascia.
  3. Disconnect multiplugs from dimmer resistor and door mirror selector switch.
  4. Remove cowl.
  5. Remove dimmer and mirror switch from cowl.

Refit

  1. Fit dimmer and mirror switch to cowl.
  2. Position cowl and connect multiplugs.
  3. Position cowl to fascia and secure with screws.
  4. Fit steering column nacelle. See STEERING, Repairs.

INSTRUMENT PACK WINDOW

Service repair no - 88.20.06

Remove

  1. Remove instrument illumination housing. See this section.

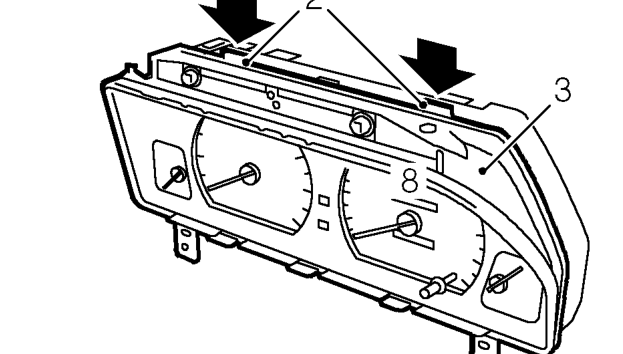

Instrument pack window – Remove instrument illumination housing. See this section.
  1. Release 4 clips securing panel window to instruments.
  2. Remove instrument pack window.

Refit

  1. Fit pack window and secure with clips.
  2. Fit instrument illumination housing. See this section.
