SPEEDOMETER CABLE - LOWER - UP TO 2000MY

Service repair no - 88.30.09

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

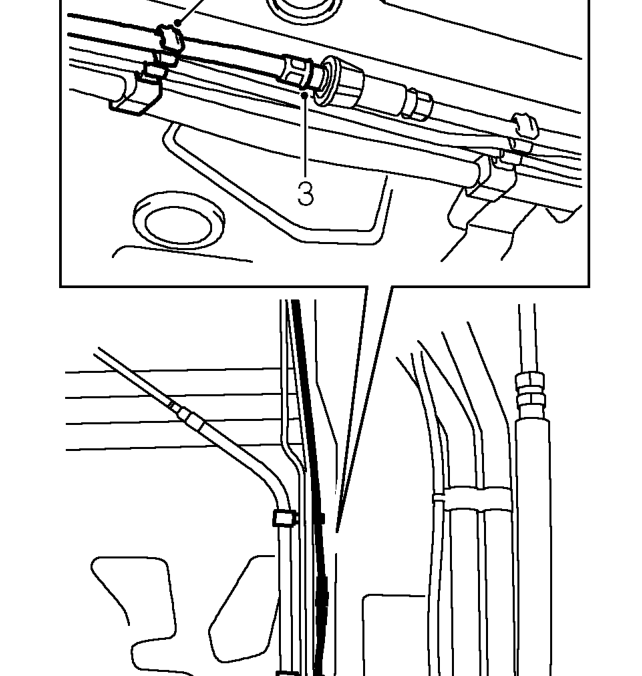

Speedometer cable - lower - up to 2000my – Raise rear of vehicle.
  1. Release speedometer cable from 2 underfloor clips.
  2. Disconnect lower cable from intermediate cable.

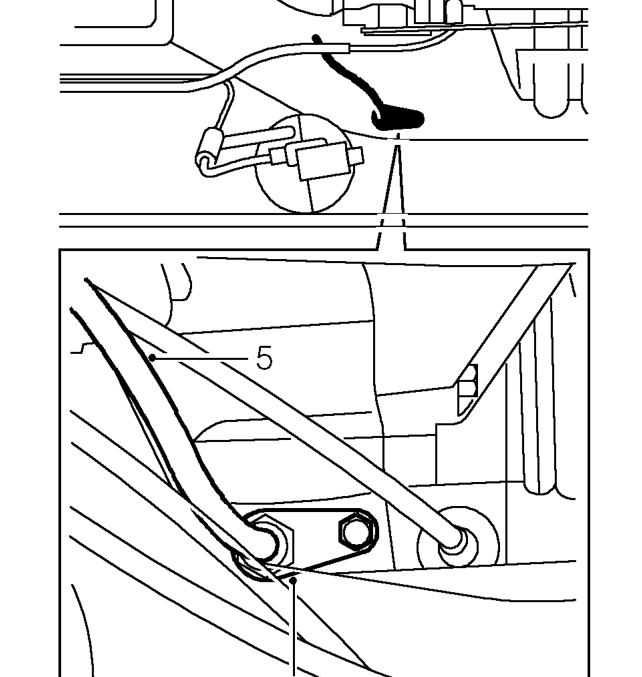

Speedometer cable - lower - up to 2000my – Disconnect lower cable from intermediate cable.
  1. Loosen cable union to gearbox and disconnect cable.
  2. Remove speedometer cable.

Refit

  1. Position cable to gearbox and tighten union to 19 Nm.
  2. Connect lower cable to intermediate cable and secure cable to clips.
  3. Remove stand(s) and lower vehicle.
