Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)22 · Instruments
22 · Electrical

Tachometer - up to 2000my

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Tachometer - up to 2000my
InstrumentsTachometer - up to 2000my

TACHOMETER - UP TO 2000MY

Service repair no - 88.30.21

Remove

  1. Remove instrument pack window. See this section.
Tachometer - up to 2000my – Remove instrument pack window. See this section.
  1. Remove 5 screws securing tachometer to casing.
  2. Remove tachometer.

Refit

  1. Fit tachometer to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.

TACHOMETER - 2000MY ON

Service repair no - 88.30.21

Remove

  1. Remove instrument pack window. See this section.
Tachometer - 2000my on – Remove instrument pack window. See this section.

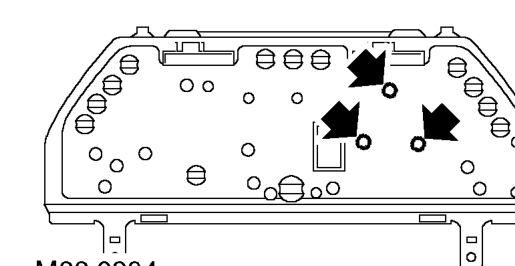

  1. Remove 3 screws securing tachometer to casing.
  2. Remove tachometer .

Refit

  1. Fit tachometer to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.
