INSTRUMENT ILLUMINATION HOUSING

Service repair no - 88.20.07

Remove

  1. Remove instrument pack. See this section.

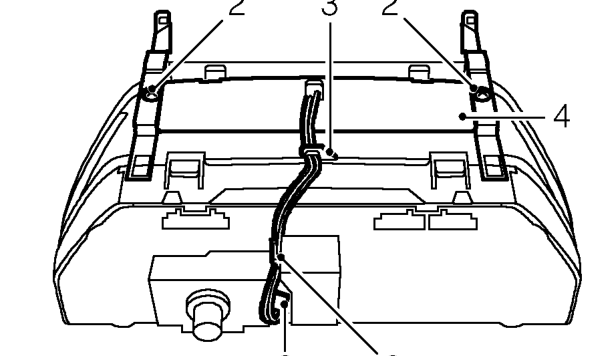

Instrument illumination housing – Remove instrument pack. See this section.
  1. Remove 2 screws securing brackets to instrument pack and collect brackets.
  2. Release bulb holder from casing and cables from 2 casing clips.
  3. Remove instrument illumination housing.

Refit

  1. Position illumination housing to casing.
  2. Fit brackets and secure with screws.
  3. Secure bulb holder and secure cables to clips.
  4. Fit instrument pack. See this section.

INSTRUMENT WARNING LIGHT PANEL

Service repair no - 88.20.18

Remove

  1. Remove instrument pack. See this section.

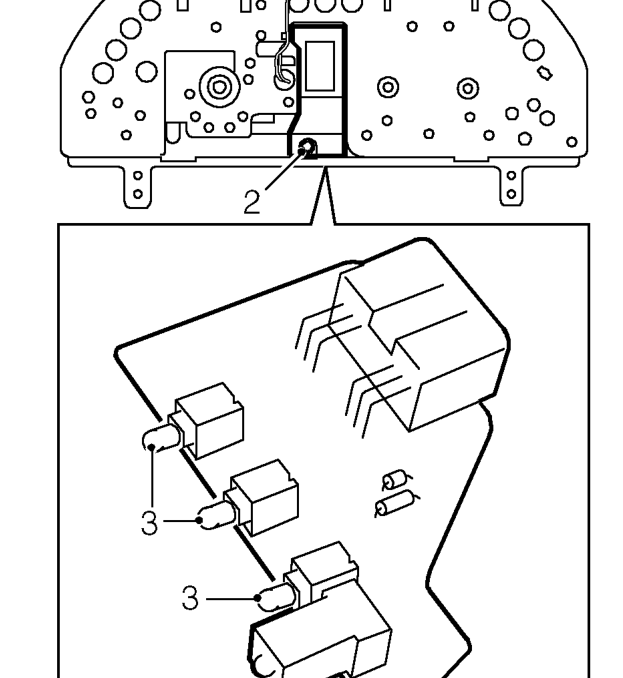

Instrument warning light panel – Remove instrument pack. See this section.
  1. Remove screw securing cover to casing and remove cover.
  2. Remove warning light panel.

Refit

  1. Fit panel to instrument pack.
  2. Fit cover and secure with screw.
  3. Fit instrument pack. See this section.
