InstrumentsSpeedometer - up to 2000my

SPEEDOMETER - UP TO 2000MY

Service repair no - 88.30.01

Remove

  1. Remove instrument pack window. See this section.

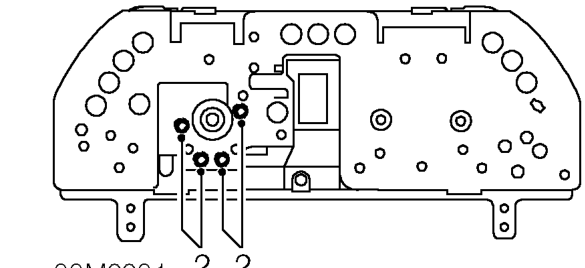

Speedometer - up to 2000my – Remove instrument pack window. See this section.
  1. Remove 4 screws securing speedometer to casing.
  2. Remove speedometer.

Refit

  1. Fit speedometer to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.

SPEEDOMETER - 2000MY ON

Service repair no - 88.30.01

Remove

  1. Remove tachometer. See this section.

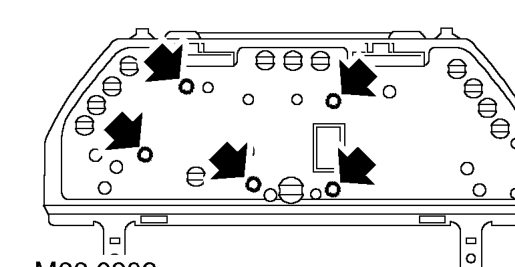

Speedometer - 2000my on – Remove tachometer. See this section.
  1. Remove 5 screws securing speedometer to casing.
  2. Remove speedometer.

Refit

  1. Fit speedometer to instrument pack and secure with screws.
  2. Fit tachometer. See this section.
