InstrumentsSpeedometer cable - intermediate - up to 2000my

SPEEDOMETER CABLE - INTERMEDIATE - UP TO 2000MY

Service repair no - 88.30.13

Remove

  1. Remove underbonnet closing panel. See BODY, Exterior fittings.

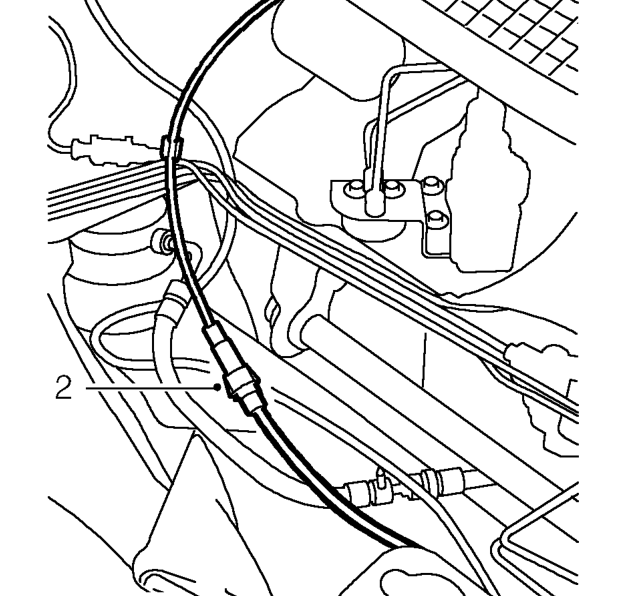

Speedometer cable - intermediate - up to 2000my – Remove underbonnet closing panel. See BODY, Exterior fittings.
  1. Disconnect intermediate cable from upper cable.
  2. Remove underbody crossmember. See BODY, Exterior fittings.

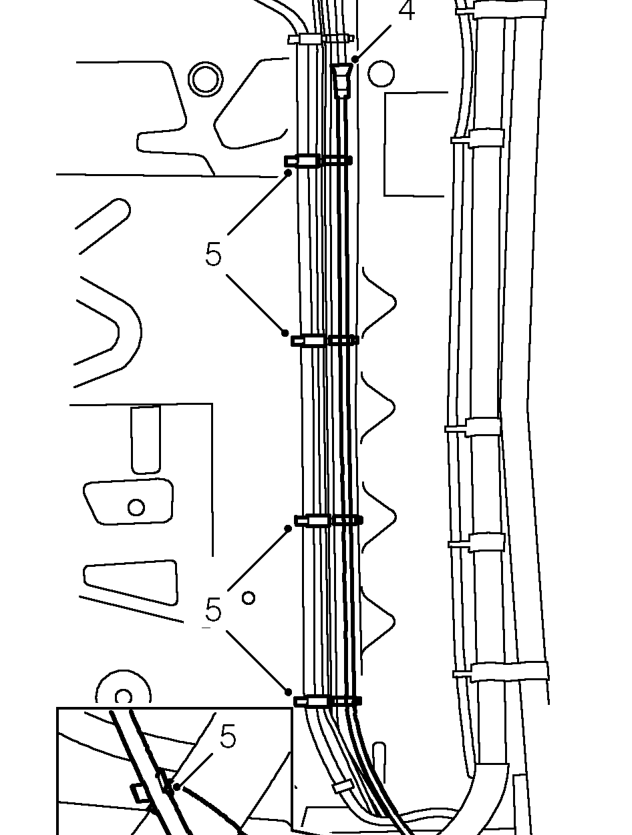

Speedometer cable - intermediate - up to 2000my – Remove underbody crossmember. See BODY, Exterior fittings.
  1. Disconnect intermediate cable from lower cable.
  2. Release intermediate cable from 4 underbody clips and 1 coolant hose clip.
  3. Collect intermediate cable.

Refit

  1. Fit intermediate cable to underbody clips and coolant hose clip.
  2. Connect intermediate cable to lower cable.
  3. Fit underbody crossmember. See BODY, Exterior fittings.
  4. Connect intermediate cable to upper cable.
  5. Fit underbonnet closing panel. See BODY, Exterior fittings.
