MG MGF Factory Workshop Manual (1995-2000)13 · Steering
13 · Steering & suspension

Steering rack

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Steering rack
SteeringSteering rack · page 1 of 2

STEERING RACK

Service repair no - 57.25.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Steering rack – Remove road wheel(s).

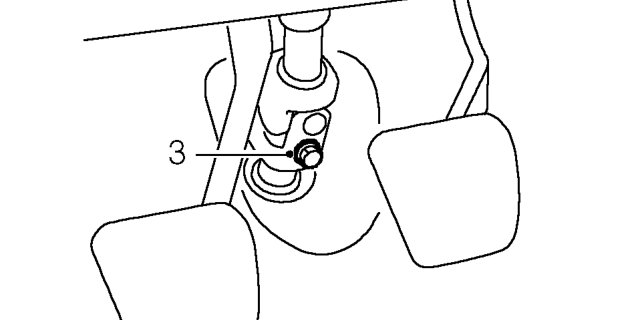

  1. Remove bolt securing intermediate shaft to steering rack.
  2. Remove 3 nuts securing pinion cover.
Steering rack – Remove 3 nuts securing pinion cover.

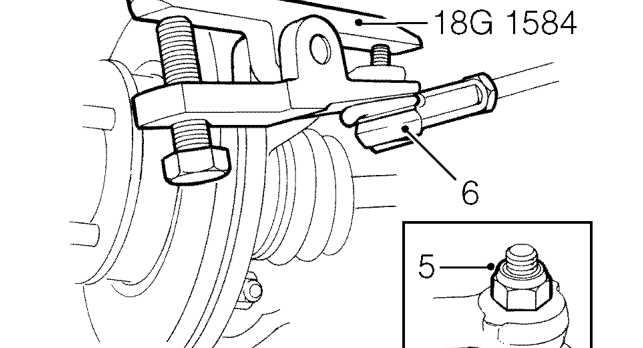

  1. Remove nuts securing track-rod ends to steering arms.
  2. Using tool 18G 1584 break both track-rod end taper joints.
Steering rack – Using tool 18G 1584 break both track-rod end taper joints.

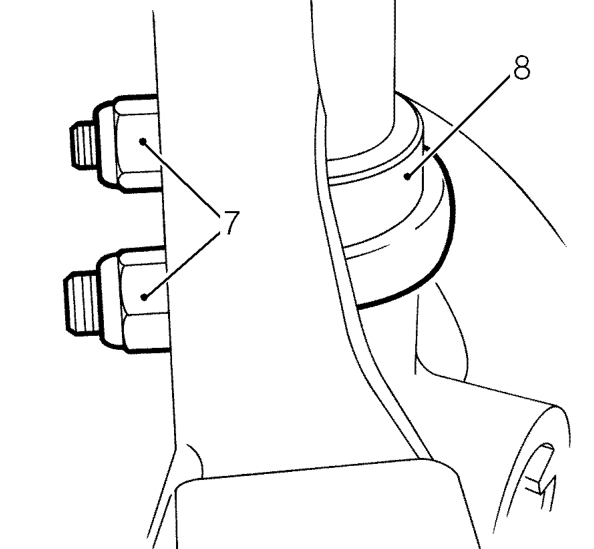

  1. Remove nuts securing steering rack ’U’ bolt to subframe.
  2. Remove ’U’ bolt.
Steering rack – Remove ’U’ bolt.

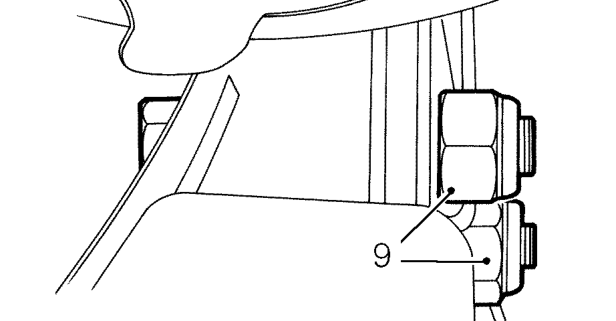

  1. Remove bolts securing steering rack clamp to subframe.
  2. Remove clamp.
  3. Support front subframe with trolley jack.

CAUTION: Place a piece of wood between the jack and the subframe to avoid damage.
