STEERING COLUMN - WITH EPAS - 2000MY ON

Service repair no - 57.43.01

Remove

  1. Make the SRS system safe. See RESTRAINT SYSTEMS, Precautions.

CAUTION: The steering column upper mountings have breakout capsules which are critical to crash performance. Do not clamp the capsules in a vice or otherwise mishandle them.

WARNING: If the breakout capsules on the upper mountings are damaged the steering column must be replaced.

  1. Remove steering column switch pack. See ELECTRICAL, Repairs.
Steering column - with epas - 2000my on – Remove steering column switch pack. See ELECTRICAL, Repairs.

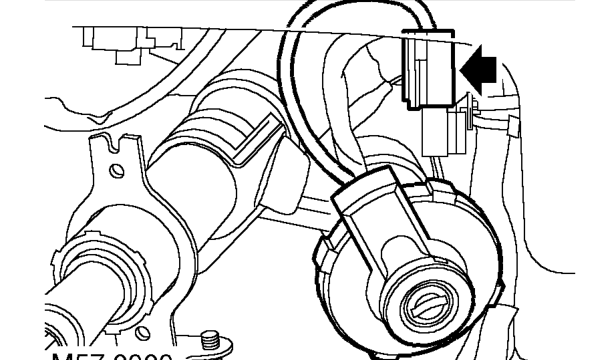

  1. Release transponder coil from ignition switch, disconnect multiplug and remove transponder coil.
Steering column - with epas - 2000my on – Release transponder coil from ignition switch, disconnect multiplug and remove transponder

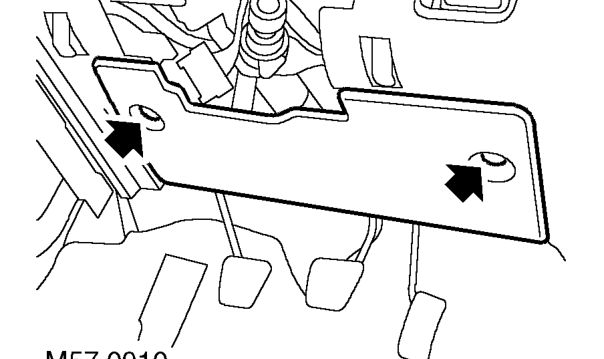

  1. Loosen 2 screws and scrivets securing fuse box cover to fascia and remove fusebox cover.
Steering column - with epas - 2000my on – Loosen 2 screws and scrivets securing fuse box cover to fascia and remove fusebox cover.

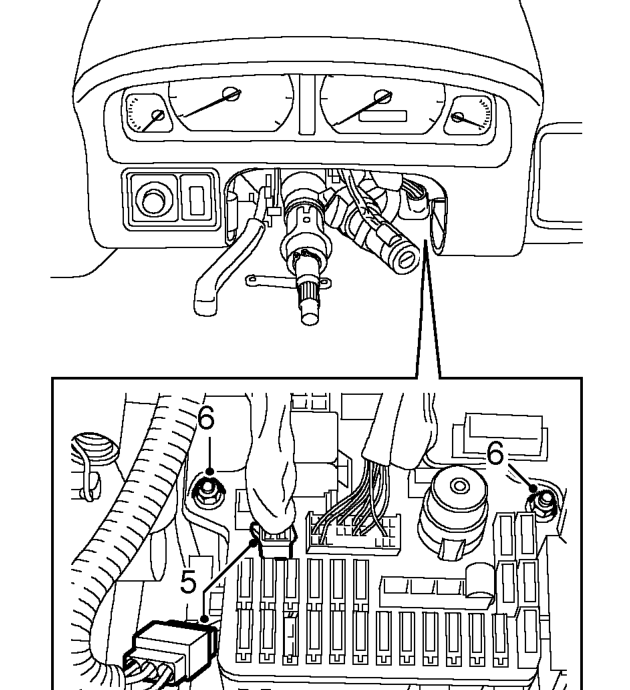

  1. Disconnect ignition switch multiplugs from fusebox and main harness.
  2. Remove 2 nuts securing passenger compartment fusebox to body and position aside.
