MG MGF Factory Workshop Manual (1995-2000)13 · Steering
13 · Steering & suspension

Steering column - with epas - 2000my on (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SteeringSteering column - with epas - 2000my on · page 2 of 3
Diagram

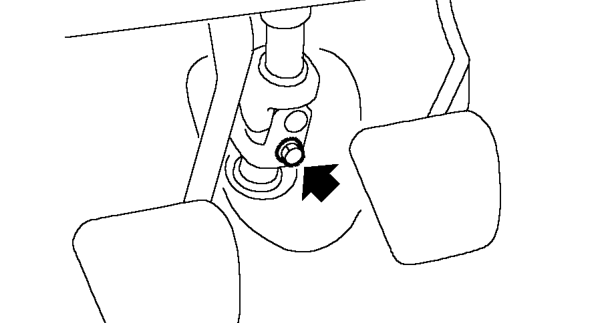

  1. Remove bolt securing universal joint to steering rack pinion.

CAUTION: The steering column upper mounting bolts must be removed before the lower mounting bolts. This is to prevent the weight of the steering column damaging the upper mounting breakout capsules.

Remove bolt securing universal joint to steering rack pinion.

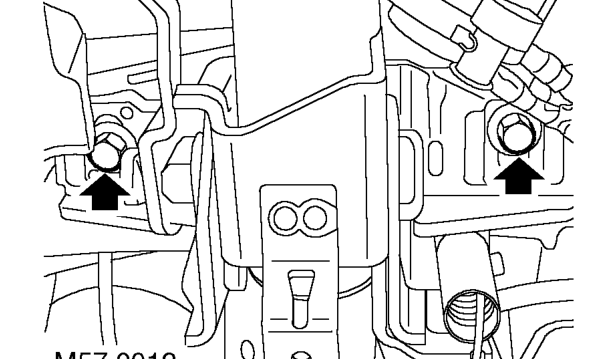

  1. Remove 2 bolts securing upper steering column to fascia rail.
Remove 2 bolts securing upper steering column to fascia rail.

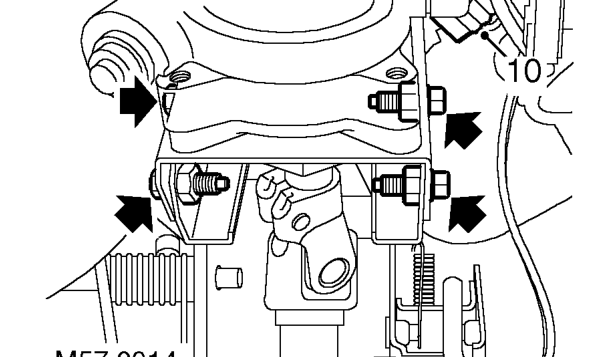

  1. Remove 4 bolts securing lower steering column to bracket.
  2. Lower steering column and disconnect 2 multiplugs.
  3. Release column assembly from steering rack pinion and remove from vehicle.
Release column assembly from steering rack pinion and remove from vehicle.

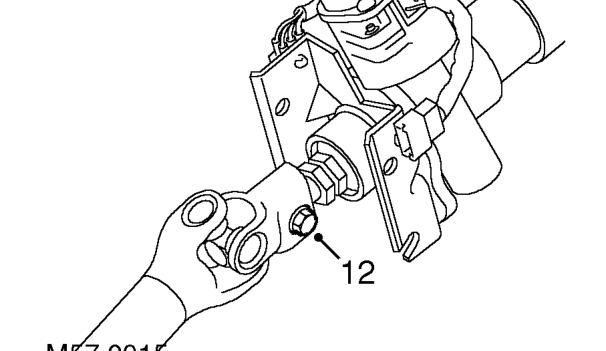

  1. Remove clamping bolt securing steering column to universal joint and remove joint.
  2. Position steering column assembly in vice.
