TRACK-ROD END

Service repair no - 57.55.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

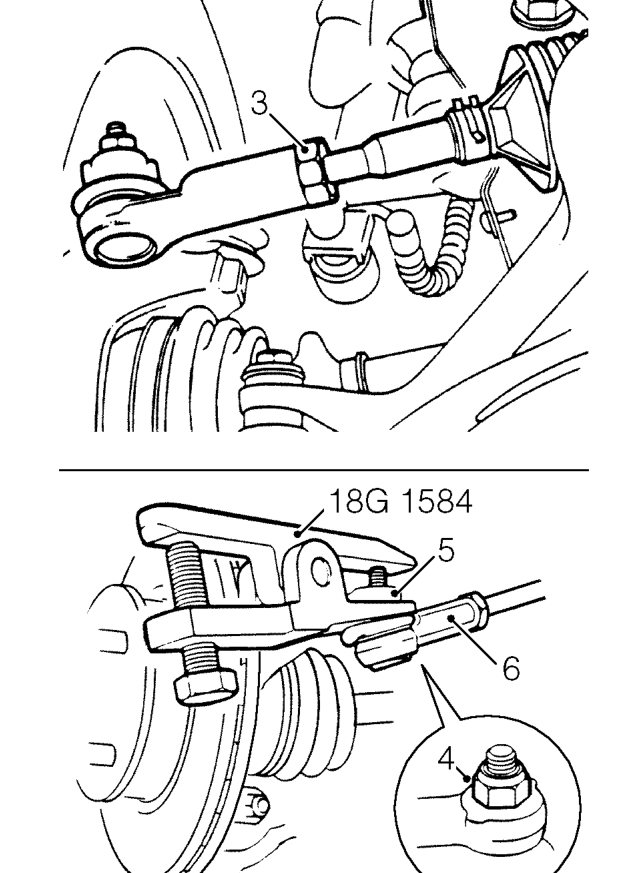

Track-rod end – Remove road wheel(s).
  1. Loosen track-rod end lock nut.
  2. Remove nut securing track-rod end to steering arm.
  3. Using tool 18G 1584, break taper joint.
  4. Noting the number of complete turns, remove track-rod end.

Refit

  1. Fit NEW track-rod end and position taper to steering arm.

NOTE: Rotate the track-rod end the same amount of turns noted on the removal.

  1. Tighten nut to 30 Nm.
  2. Tighten lock nut to 50 Nm.
  3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  4. Remove stand(s) and lower vehicle.
  5. Check and adjust front wheel alignment. See Adjustments.
