MG MGF Factory Workshop Manual (1995-2000)13 · Steering
13 · Steering & suspension

Epas ECU

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Epas ECU
SteeringEpas ECU

EPAS ECU

Service repair no - 57.43.05

Remove

  1. Remove glovebox. See BODY, Interior trim components.

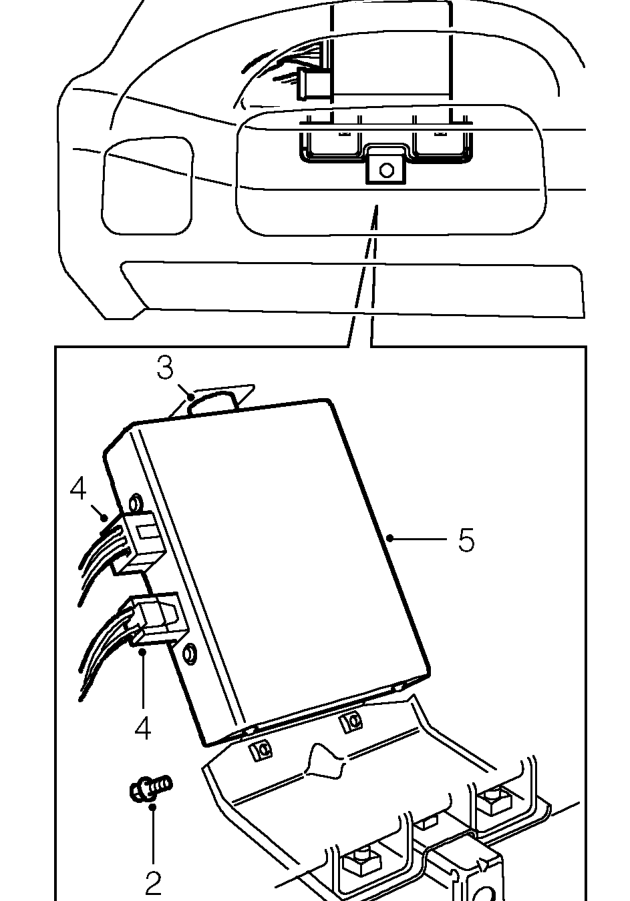

Epas ecu – Remove glovebox. See BODY, Interior trim components.

WARNING: Do not remove EPAS ECU bracket from fascia rail on vehicles fitted with a passenger airbag.

  1. Remove 2 bolts securing ECU to fascia rail bracket.
  2. Release ECU from rubber mounting.
  3. Disconnect 2 multiplugs from ECU.
  4. Remove ECU.

Refit

  1. Position ECU and connect multiplugs.
  2. Fit ECU to mounting and tighten bolts to 10 Nm.
  3. Connect multiplugs.
  4. Fit glovebox. See BODY, Interior trim components.
