Steering wheel - up to 2000my

STEERING WHEEL - UP TO 2000MY

Service repair no - 57.60.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

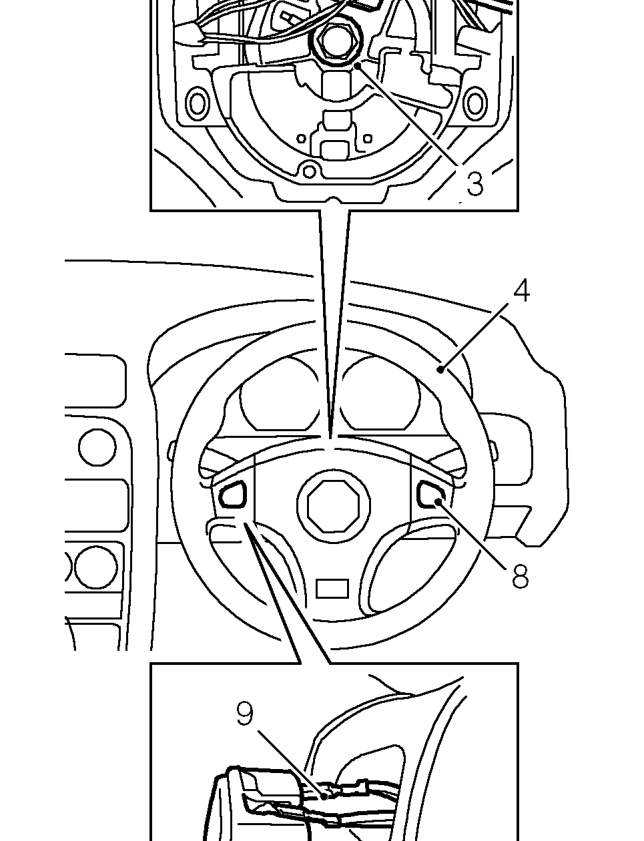

1. Remove driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

2. Disconnect horn feed lead multiplug from rotary coupler.
3. Loosen steering wheel retaining nut.
4. Release steering wheel from column splines and remove nut.
5. Remove steering wheel.
6. Attach tape across edge of rotary coupler to retain in central setting. Do not carry out further dismantling if component is removed for access only.
7. Release horn earth terminal from steering wheel.
8. Release 2 horn switches from steering wheel.
9. Disconnect 4 Lucars and remove switches.
10. Remove harness from steering wheel.
11. Fit harness to steering wheel.
12. Fit switches, connect Lucars and secure switches to steering wheel.
13. Connect horn earth terminal to steering wheel.

Refit

1. Remove retaining tape from rotary coupler.
2. Ensure road wheels are in straight ahead position and indicator cancellation cam is aligned vertical.
3. Fit steering wheel to steering column ensuring wheel spokes are horizontal, fit NEW nut and tighten to 50 Nm.
4. Connect horn multiplug to rotary coupler.
5. Fit driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.
