Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)13 · Steering
13 · Steering & suspension

Steering wheel - 2000my on

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Steering wheel - 2000my on
SteeringSteering wheel - 2000my on · page 1 of 2

STEERING WHEEL - 2000MY ON

Service repair no - 57.60.01

Remove

  1. Remove driver’s airbag. See RESTRAINT SYSTEMS, Repairs.

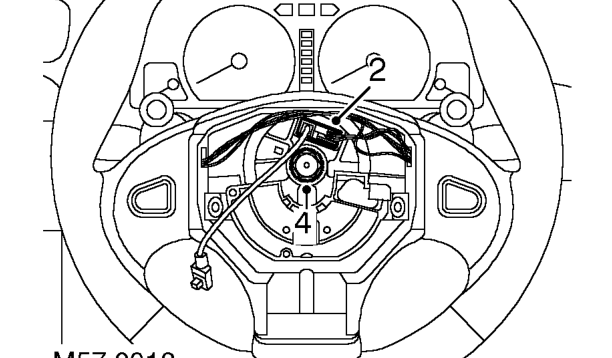

Steering wheel - 2000my on – Remove driver’s airbag. See RESTRAINT SYSTEMS, Repairs.
  1. Disconnect horn/sequential gear change switch multiplug.
  2. Centralise steering wheel with road wheels in straight ahead position.
  3. Restrain steering wheel and loosen nut securing steering wheel to column.
  4. Release steering wheel from column.
  5. Remove steering wheel.

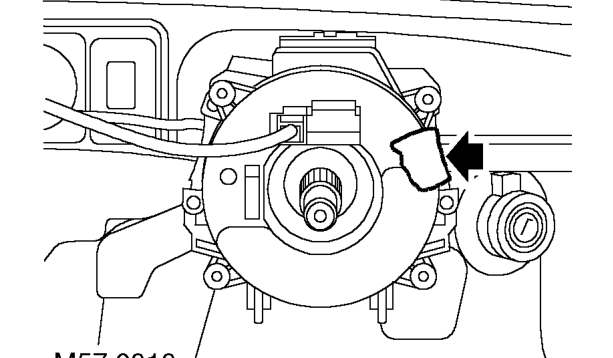

Steering wheel - 2000my on – Remove steering wheel.
  1. Attach tape across edge of rotary coupler to retain correct setting and to prevent rotational damage to rotary coupler.

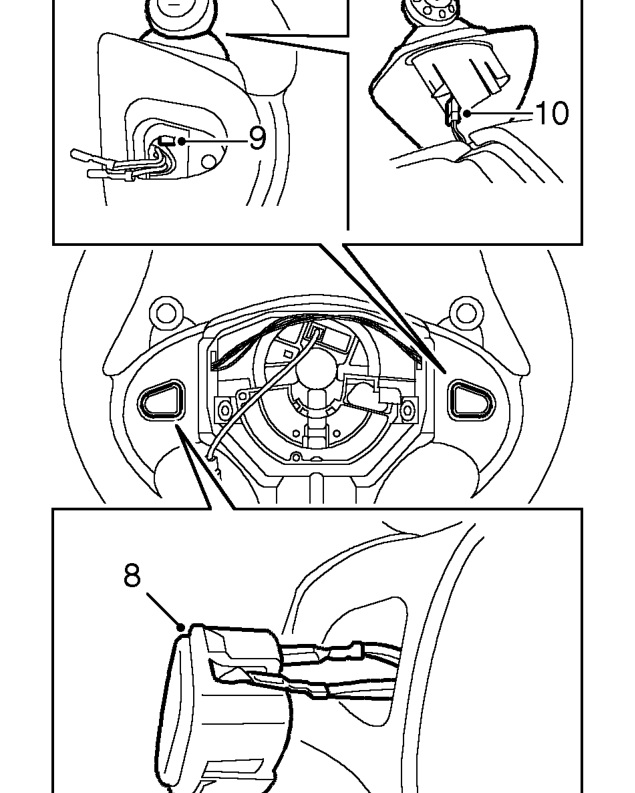

Steering wheel - 2000my on – Attach tape across edge of rotary coupler to retain correct setting and to prevent rotatio
  1. Release horn switches, disconnect Lucar connections and remove horn switches.
  2. Release clips securing sequential gear change switches, release switches from steering wheel.
  3. Disconnect gear change switch multiplugs and remove switches from steering wheel.
  4. Remove steering wheel harness.
