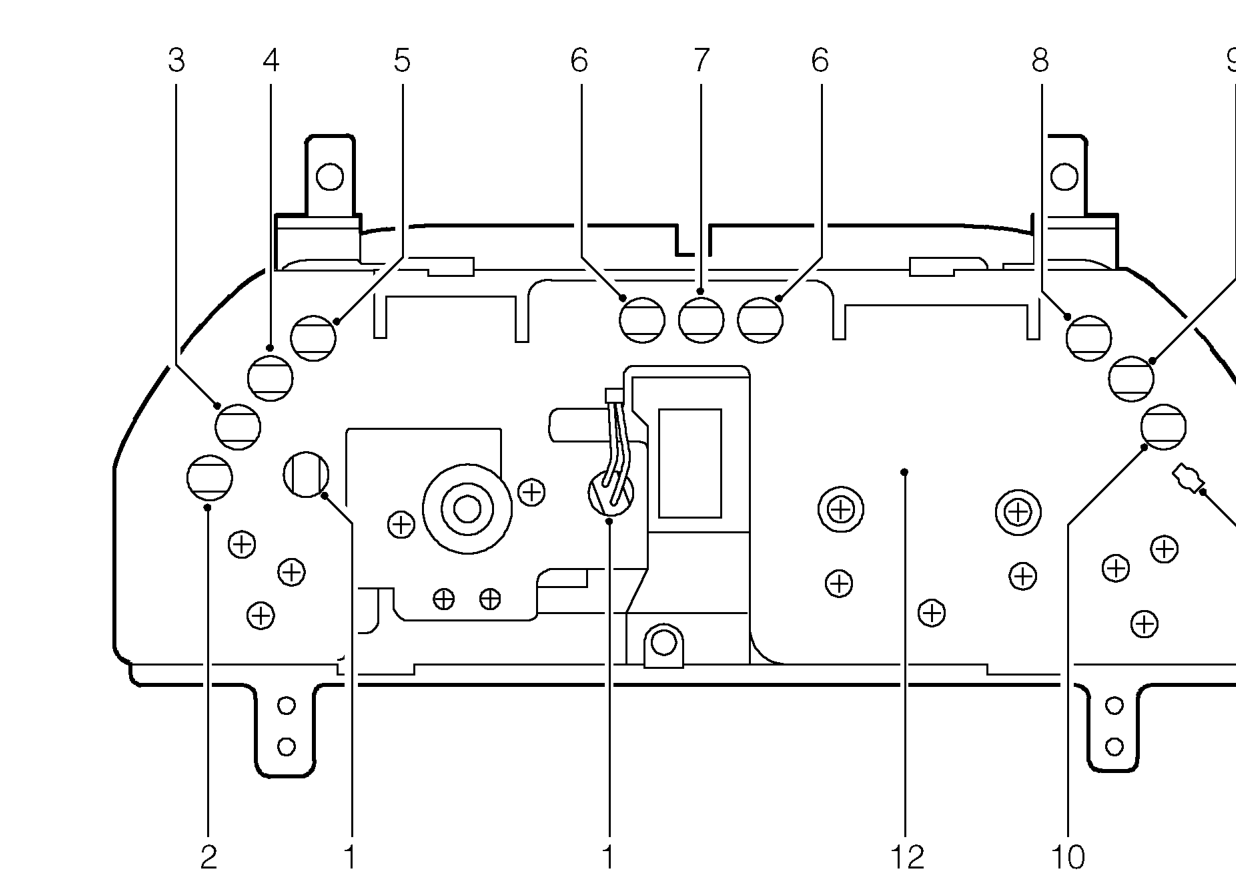

INSTRUMENT PACK COMPONENTS - REAR VIEW (UP TO 2000MY)

1. Panel rear illumination bulbs
2. ABS - warning light bulb
3. Engine bay temperature - warning light bulb
4. Hazard lights - warning light bulb
5. Brake fail / handbrake - warning light bulb
6. Direction indicator - warning light bulb
7. Main beam - warning light bulb
8. Low oil pressure - warning light bulb
9. Ignition no charge - warning light bulb
10. Rear fog lights - warning light bulb
11. Catalyst over heat - warning light bulb
12. Main printed circuit
