InstrumentsInstrument pack components - rear view (from 2000my)

INSTRUMENT PACK COMPONENTS - REAR VIEW (FROM 2000MY)

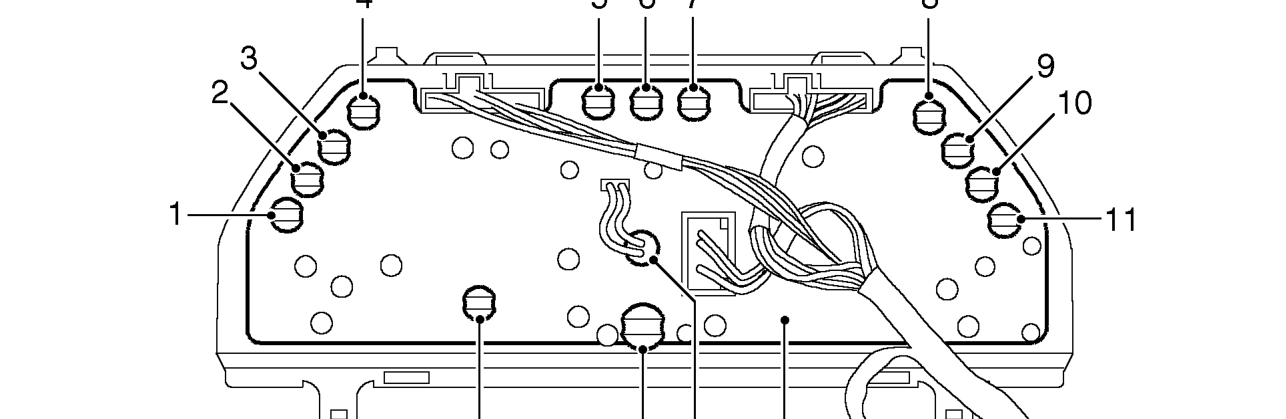

Instrument pack components - rear view (from 2000my)
  1. Rear fog lamps - warning light bulb
  2. Gearbox fault (Steptronic gearbox only) - warning light bulb
  3. Hazard warning lamps - warning light bulb
  4. Brake fail / Handbrake - warning light bulb
  5. RH direction indicator - warning light bulb
  6. Main beam - warning light bulb
  7. LH direction indicator - warning light bulb
  8. Low oil pressure - warning light bulb
  9. Ignition / No charge - warning light bulb
  10. Malfunction Indicator Lamp (MIL) - warning light bulb
  11. ABS - warning light bulb
  12. Main printed circuit board
  13. Panel rear illumination bulb
  14. Anti-theft alarm LED
  15. LCD illumination bulb
