Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)10 · Manual gearbox
10 · Transmission

Selector shaft oil seal

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Selector shaft oil seal
Manual gearboxSelector shaft oil seal · page 1 of 2

SELECTOR SHAFT OIL SEAL

Service repair no - 37.23.10

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

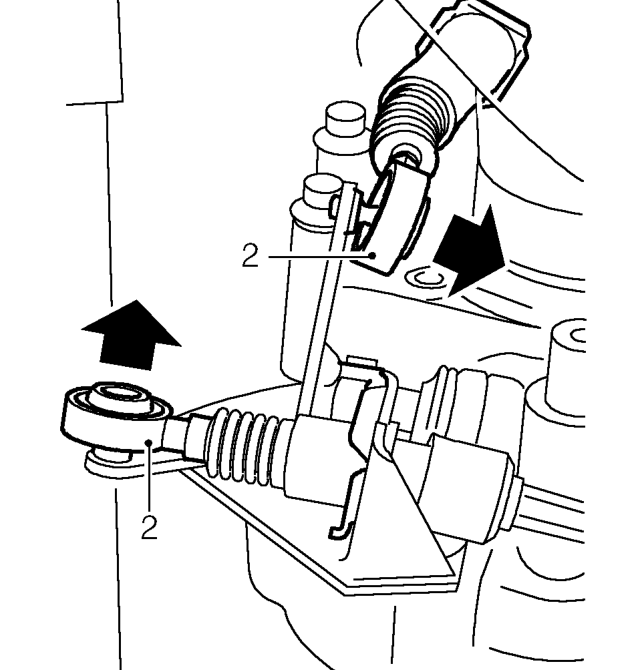

Selector shaft oil seal – Raise rear of vehicle.
  1. Release 2 gear change cables from selector linkage.

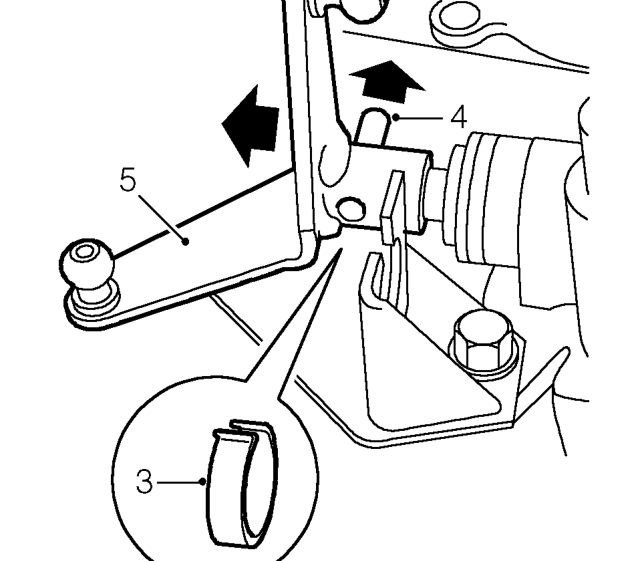

Selector shaft oil seal – Release 2 gear change cables from selector linkage.
  1. Remove clip securing selector linkage roll pin.
  2. Using a suitable punch, drive out roll pin from selector linkage and discard roll pin.
  3. Remove selector linkage from shaft.
