GEARBOX

Service repair no - 37.20.02/99

Remove

  1. Disconnect battery earth lead.
  2. Raise vehicle on a 2 post ramp.
  3. Depressurise LH side of hydragas system. See FRONT SUSPENSION, Adjustments.
  4. Remove road wheel(s).
  5. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Remove starter motor. See ELECTRICAL, Repairs.
  7. Drain gearbox oil. See MAINTENANCE.

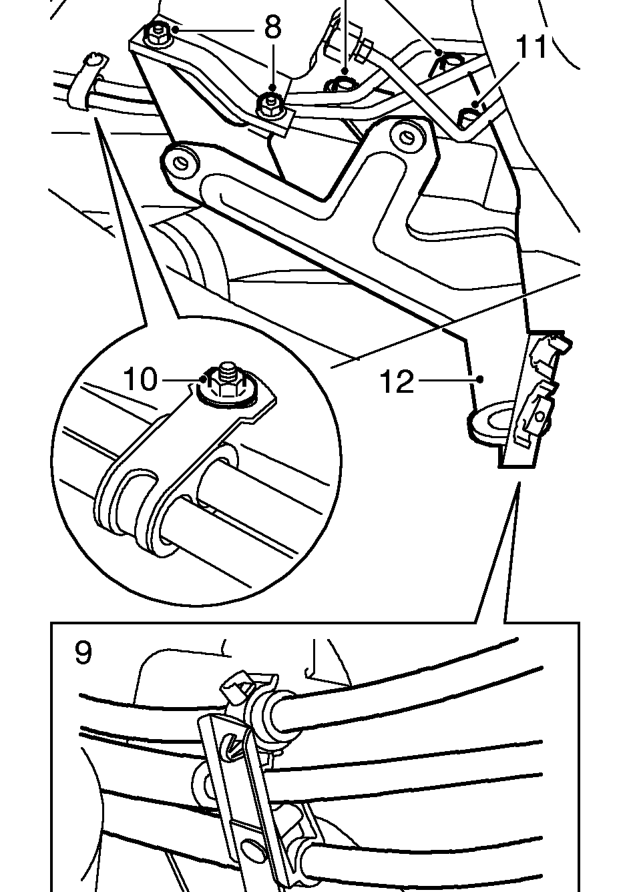

Gearbox – Drain gearbox oil. See MAINTENANCE.
  1. Remove 2 nuts securing fuel filter to air cleaner mounting bracket.
  2. Release 2 hand brake cables and speedometer cable from clips on air cleaner mounting bracket.
  3. Remove nut securing fuel pipe bracket to body.
  4. Remove 3 bolts securing air cleaner mounting bracket to body.
  5. Remove air cleaner mounting bracket.
  6. Remove air cleaner duct from resonator.

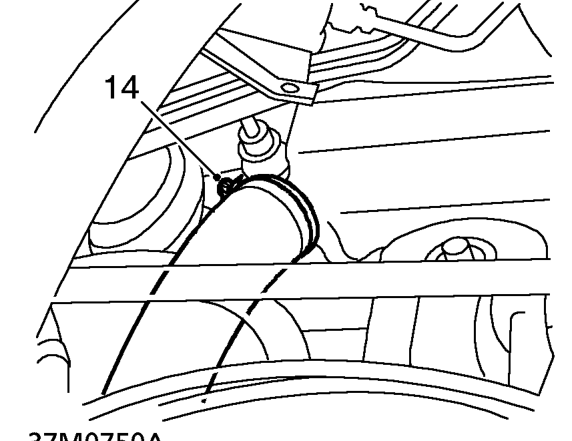

Gearbox – Remove air cleaner duct from resonator.
  1. Loosen clip and release air intake hose from resonator.
