Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)10 · Manual gearbox
10 · Transmission

Gearbox (page 8 of 11)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearboxGearbox · page 8 of 11
Diagram

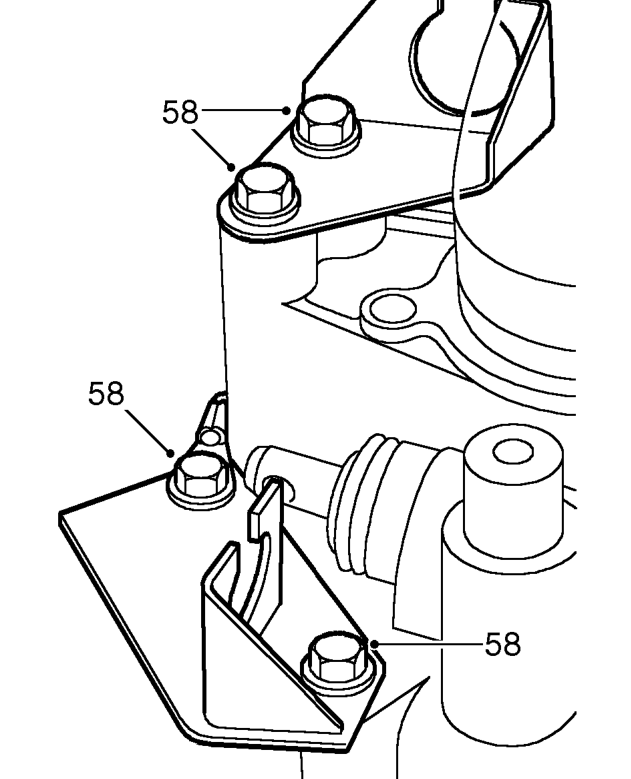

  1. Remove 4 bolts securing 2 gear change cable abutment brackets to gearbox, remove brackets.
  2. Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

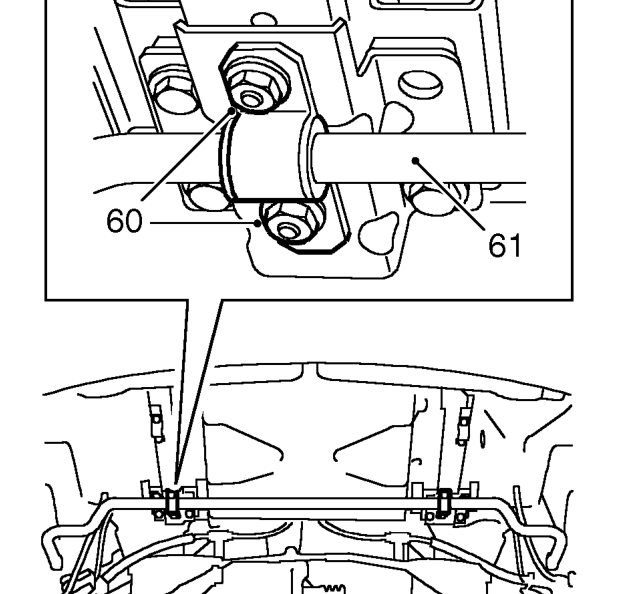

  1. Remove 4 nuts securing both rear anti-roll bar bush clamps.
  2. Remove rear anti-roll bar.
