Manual gearboxGearbox · page 7 of 11
Diagram

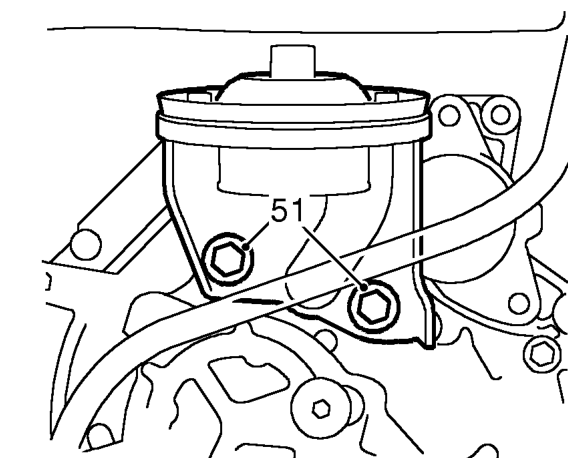

  1. Remove 2 bolts securing LH engine mounting to gearbox, remove mounting.
Remove 2 bolts securing LH engine mounting to gearbox, remove mounting.

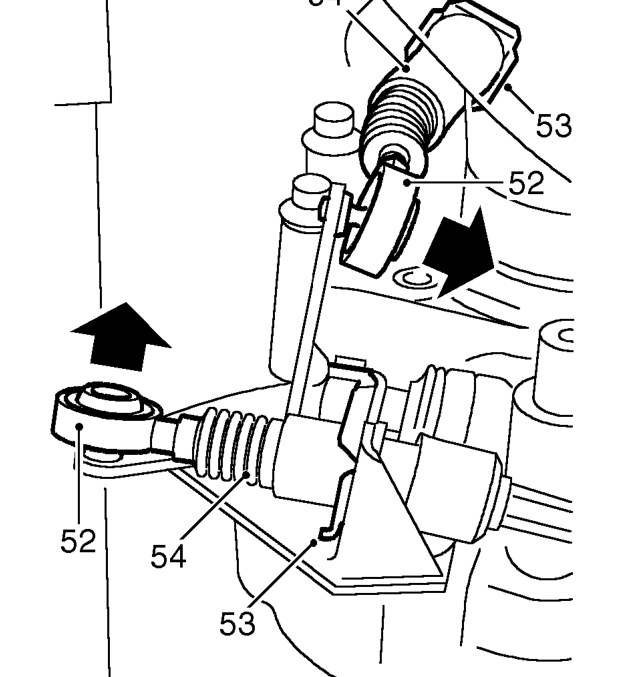

  1. Release both gear change cable ball joints from linkage.
  2. Remove and discard 2 clips securing gear change cables to abutment brackets and discard clips.
  3. Release gear change cables from abutment brackets.
Release gear change cables from abutment brackets.

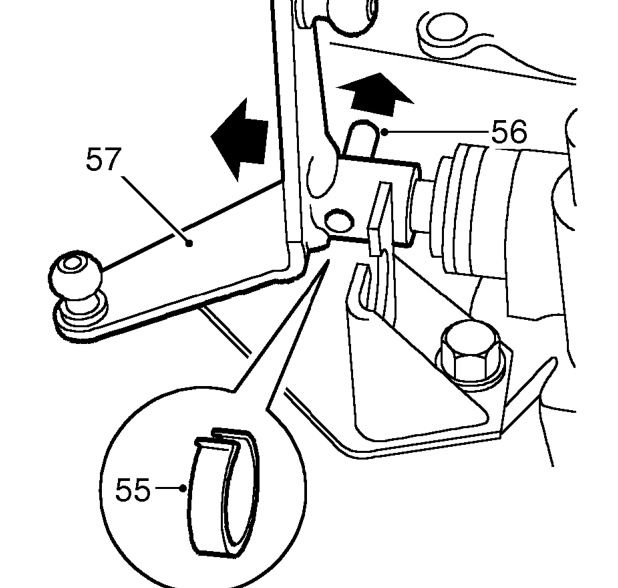

  1. Remove clip retaining selector linkage roll pin.
  2. Using a suitable punch, drive out selector linkage roll pin.
  3. Remove selector linkage from selector shaft.
