MG MGF Factory Workshop Manual (1995-2000)10 · Manual gearbox
10 · Transmission

Gearbox (page 4 of 11)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearboxGearbox · page 4 of 11
Diagram
  1. Remove bolt securing ABS speed sensors to both rear hubs.
  2. Release ABS speed sensors from hubs and collect spacers.
  3. Release ABS sensor cable from clips on both upper arms.
  4. Release ABS sensor cable from 3 clips on LH hydragas unit.
Release ABS sensor cable from 3 clips on LH hydragas unit.

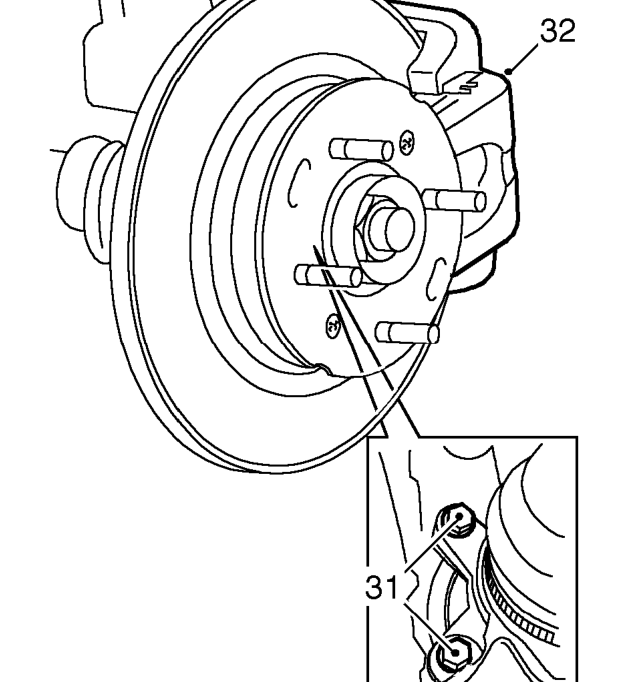

  1. Remove 4 bolts securing both caliper carriers to hubs.
  2. Move calipers aside. Tie caliper clear of brake discs, ensuring that the weight of the caliper is supported.

CAUTION: Do not allow caliper to hang on brake hose as weight of caliper may damage hose.
