MG MGF Factory Workshop Manual (1995-2000)10 · Manual gearbox
10 · Transmission

Gearbox (page 3 of 11)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearboxGearbox · page 3 of 11
Diagram

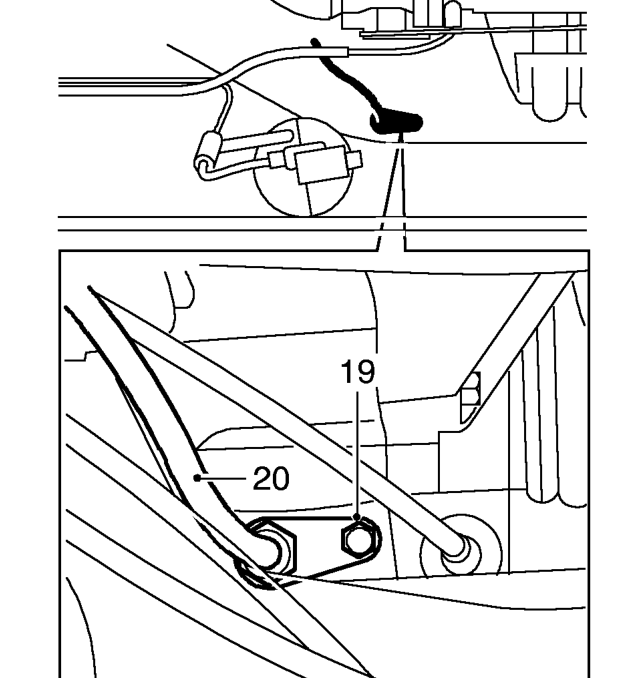

  1. Up to 2000MY: Remove bolt securing speedometer cable pinion to gearbox.
  2. Release speedometer cable from gearbox.
  3. Remove and discard ’O’ ring seal.
  4. 2000MY ON: Disconnect multiplug from road speed transducer.
  5. Remove bolt securing transducer to gearbox, remove transducer and discard ’O’ ring.
  6. All models: Release clip securing starter motor lead to slave cylinder mounting bracket, position lead aside.
All models: Release clip securing starter motor lead to slave cylinder mounting bracket, p

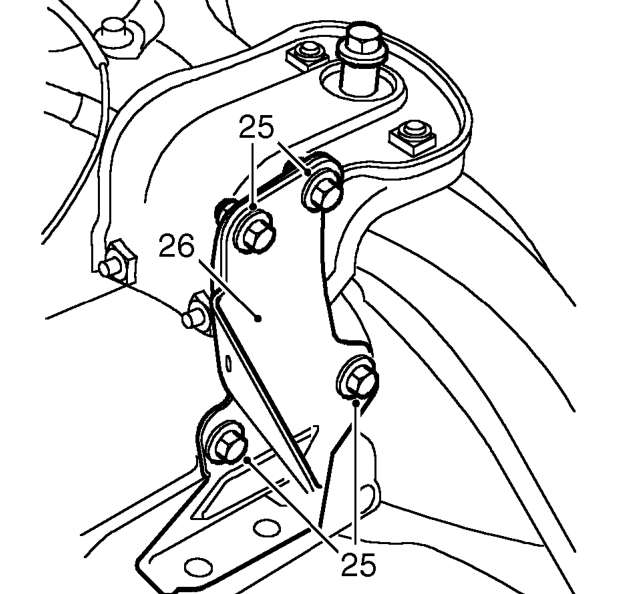

  1. Remove 4 bolts securing clutch slave cylinder mounting bracket to gearbox.
  2. Remove clutch slave cylinder mounting bracket.
