MG MGF Factory Workshop Manual (1995-2000)10 · Manual gearbox
10 · Transmission

Gearbox (page 2 of 11)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Manual gearboxGearbox · page 2 of 11
Diagram

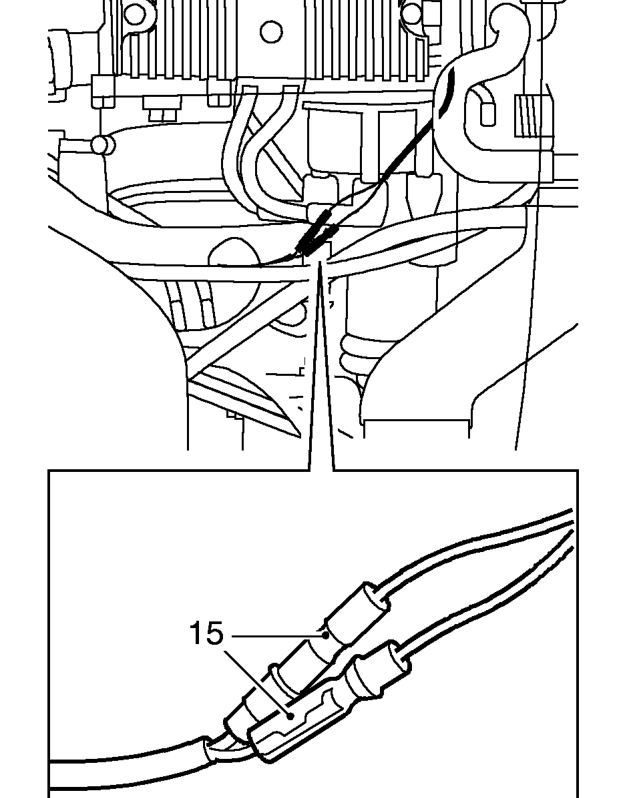

  1. Disconnect 2 reverse light switch connections.
Disconnect 2 reverse light switch connections.

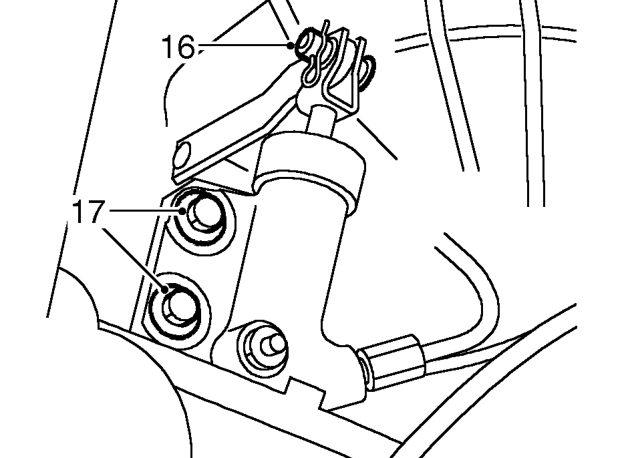

  1. Remove ’R’ clip and clevis pin securing clutch slave cylinder push rod to release lever. Remove push rod from slave cylinder.
  2. Remove 2 bolts securing slave cylinder to mounting bracket.
  3. Release slave cylinder pipe from clip under bracket and move cylinder aside.
