Manual gearboxGearbox · page 5 of 11
Diagram

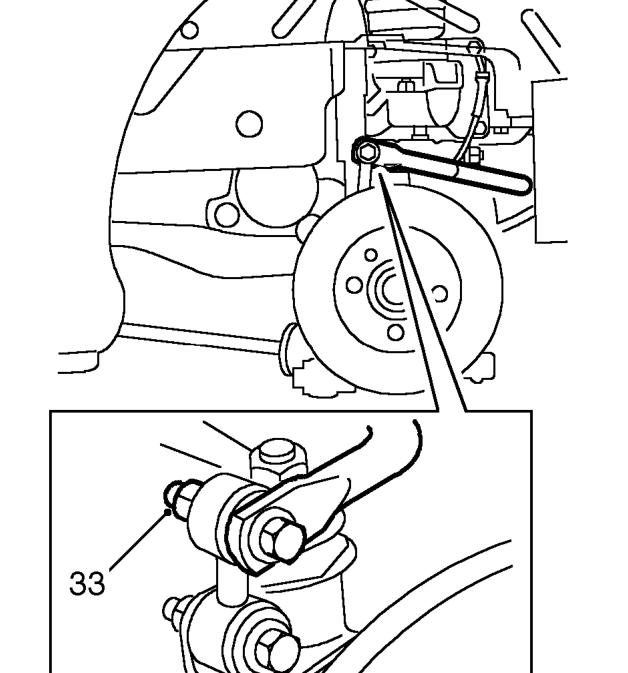

  1. Remove nuts and bolts securing anti-roll bar to LH and RH links.
Remove nuts and bolts securing anti-roll bar to LH and RH links.

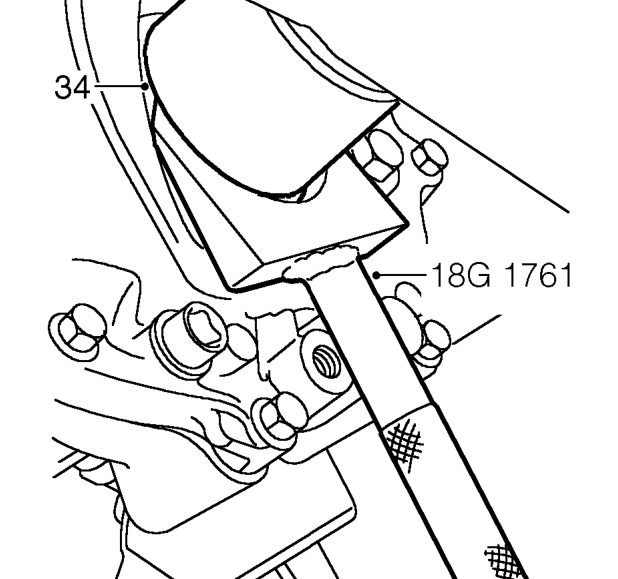

  1. Release both drive shafts from gearbox using tool 18G 1761.
Release both drive shafts from gearbox using tool 18G 1761.

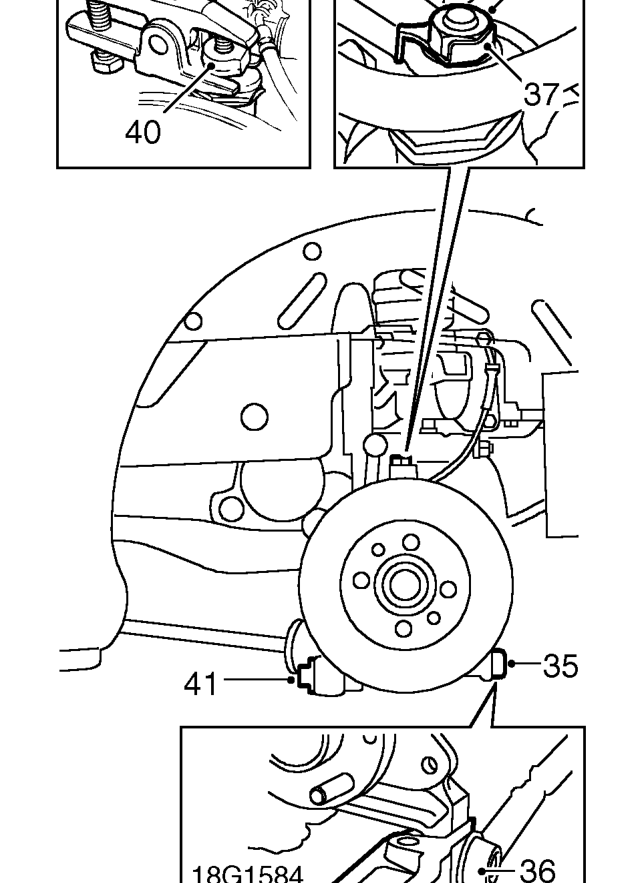

  1. Remove nuts securing track control arms to both hubs.
  2. Break track control arm joints using tool 18G 1584.
  3. Bend back lock tabs from both ball joint nuts.
  4. Remove nuts securing ball joints to upper arms.
  5. Remove lock tabs.
  6. Release taper joints from upper arms using tool 18G 1584.
  7. Remove bolts securing lower suspension arms to both hubs.
  8. Remove both hubs complete with drive shafts.
