DIFFERENTIAL OIL SEAL

Service repair no - 51.20.37

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

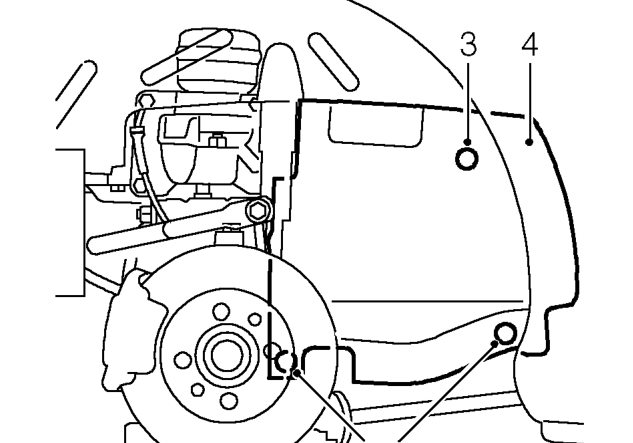

Differential oil seal – Remove road wheel(s).
  1. Remove 2 scrivets and Torx screw securing closing panel.
  2. Remove closing panel.
  3. Place a jack under vehicle and raise hub.

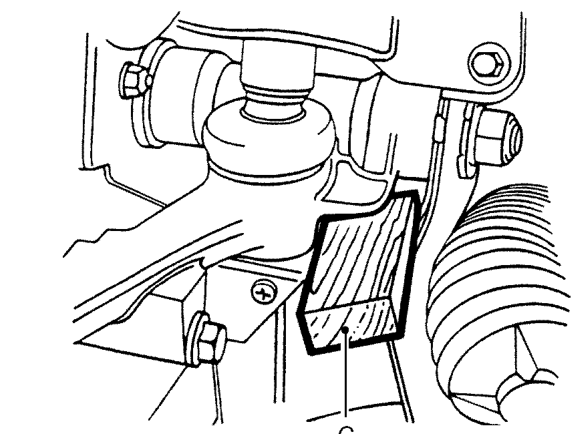

Differential oil seal – Place a jack under vehicle and raise hub.
  1. Fit a wedge between suspension upper arm and subframe. Lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

  1. Position drain tray to collect oil spillage from gearbox.
