Manual gearboxDifferential oil seal · page 2 of 2
Diagram

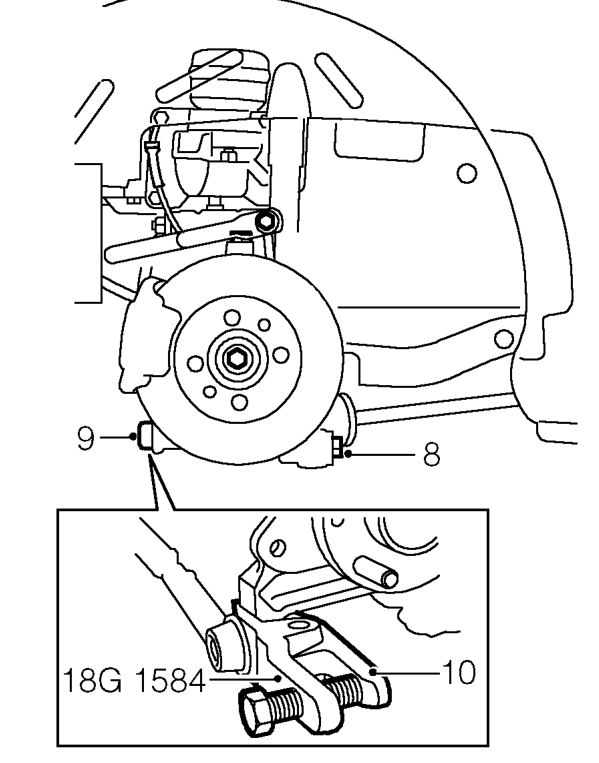

  1. Remove bolt securing lower arm to hub.
  2. Remove nut securing track control arm to hub.
  3. Break taper joint using tool 18G 1584 and release track control arm.
Break taper joint using tool 18G 1584 and release track control arm.

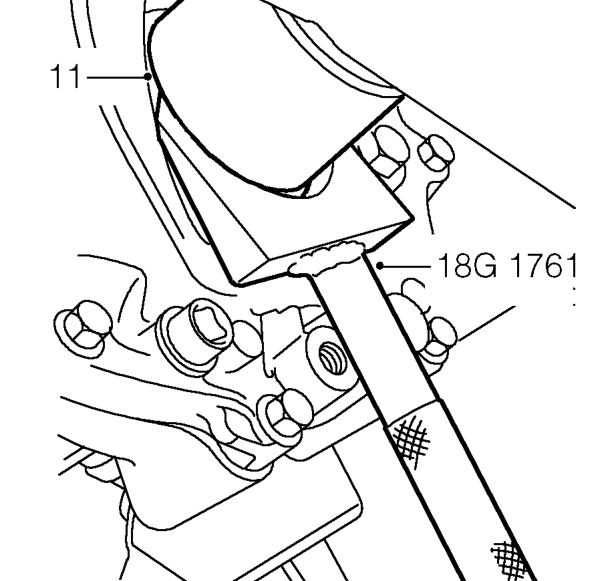

  1. Release drive shaft from differential using tool 18G 1761.
  2. Remove and discard circlip from drive shaft.
  3. Secure drive shaft clear of gearbox for access.
  4. Carefully prise oil seal out of differential housing.

CAUTION: Two types of oil seal are fitted to the PG1 gearbox, retain old oil seal for reference.
