Manual gearboxGearbox · page 9 of 11

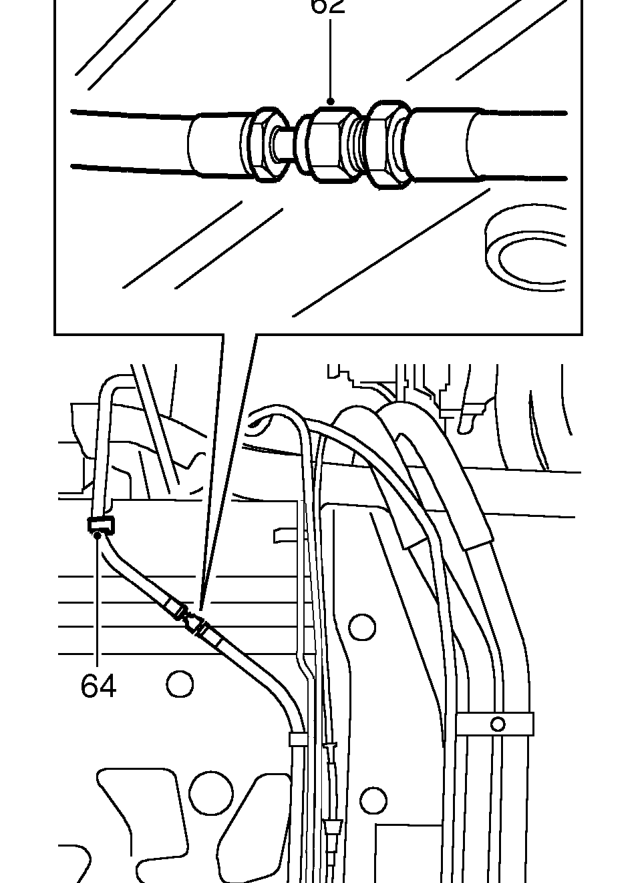

Diagram
  1. Loosen LH rear hydragas unit union joint at rear of floor pan and break joint.
  2. Remove and discard ’O’ ring seal.

CAUTION: Plug the connections.

  1. Remove clip securing hydragas pipe to floor pan.
  2. Remove crossmember. See BODY, Exterior fittings.

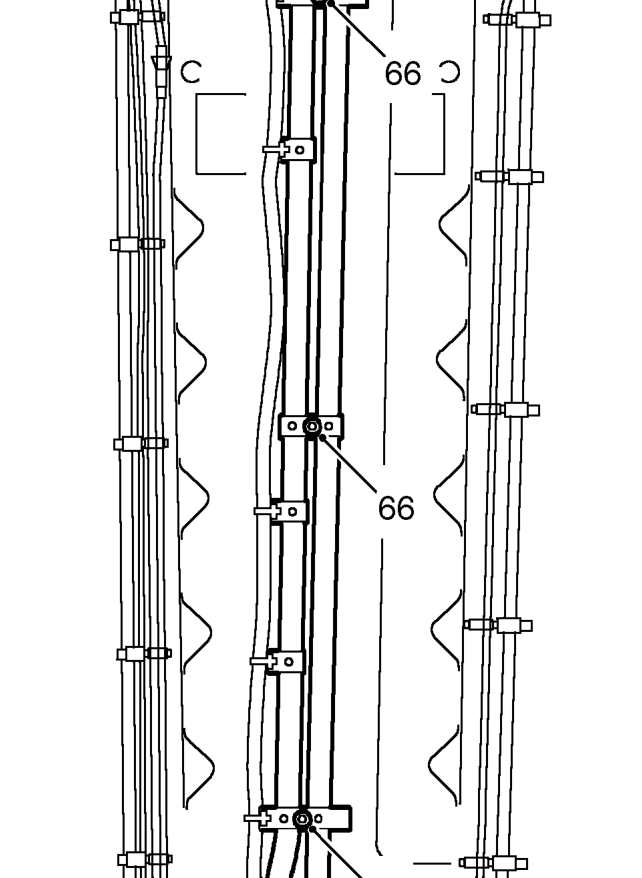

Remove crossmember. See BODY, Exterior fittings.
  1. Remove 3 bolts securing coolant pipes to floor pan.
  2. Remove nut and bolt securing LH rear suspension damper to upper arm.
  3. Remove spacer and ABS sensor cable clip.
  4. Support LH side of rear subframe on jack.
