MG MGF Factory Workshop Manual (1995-2000)13 · Steering
13 · Steering & suspension

Epas system control diagram (Steering)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Description and operation › Epas system control diagram
SteeringEpas system control diagram

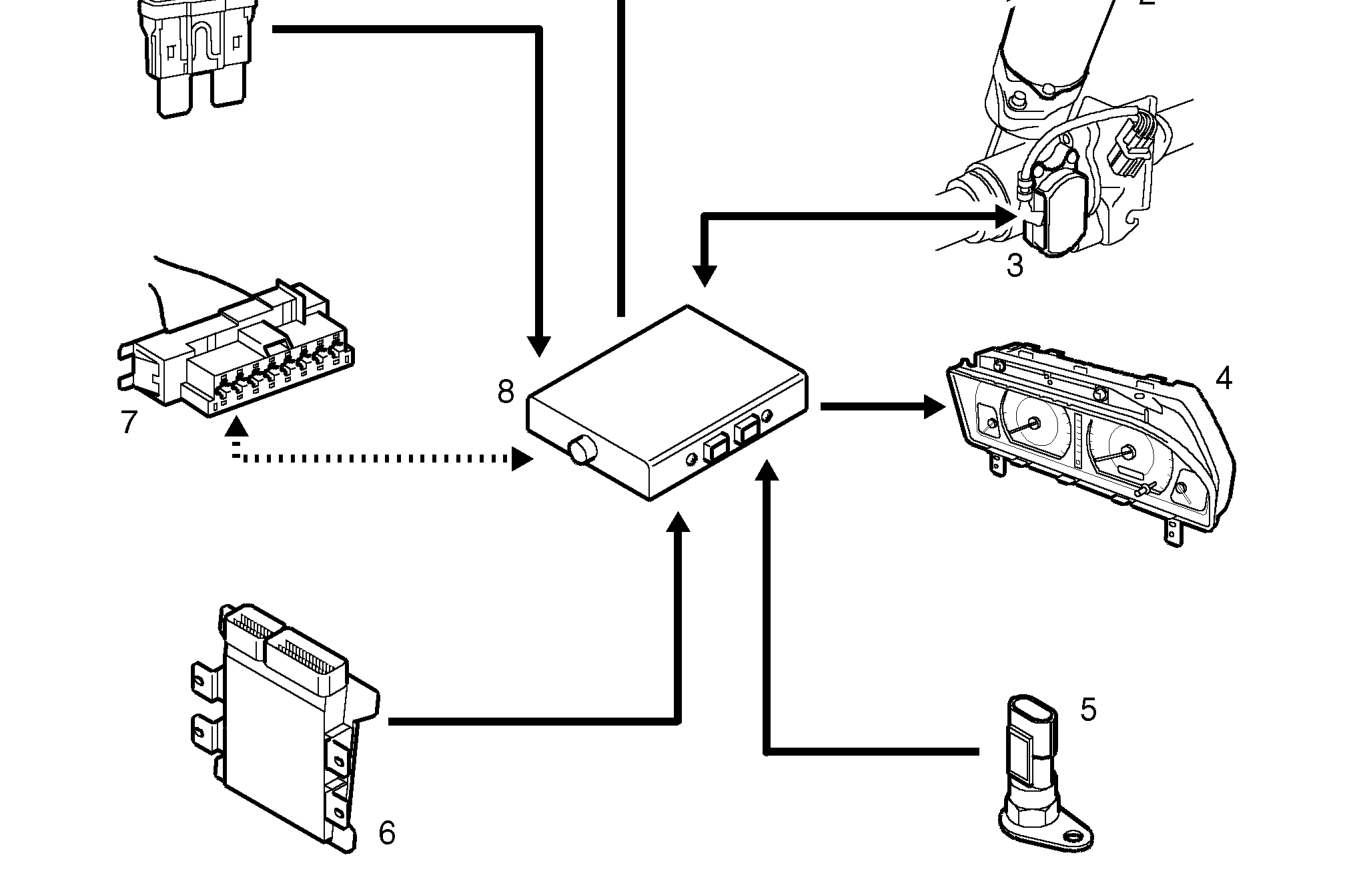

EPAS SYSTEM CONTROL DIAGRAM

Epas system control diagram

A= Hardwired; J= Diagnostic ISO 9141 K Line

  1. EPAS fuse 40A
  2. Steering motor and clutch
  3. Torque sensor
  4. Instrument pack
  5. Road speed transducer
  6. Engine Control Module (ECM)
  7. Diagnostic socket
  8. EPAS ECU
