STEERING COLUMN - WITHOUT EPAS

WARNING: The steering column is not serviceable. A damaged column must be renewed otherwise crash performance may be affected.

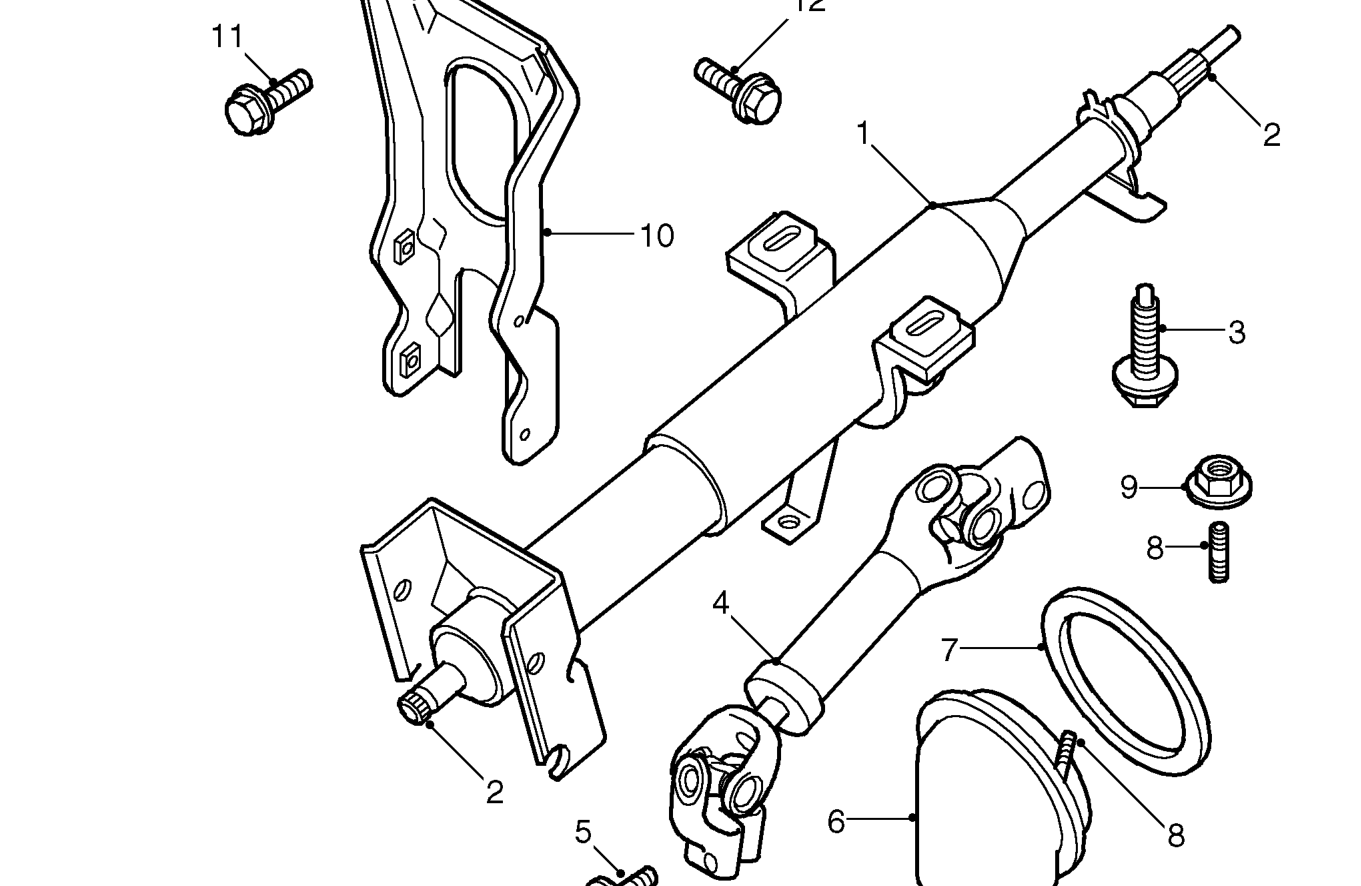

Steering column - without epas
  1. Steering column assembly
  2. Steering shaft
  3. Bolt - steering column to body, 2 off
  4. Intermediate shaft
  5. Bolt - intermediate shaft, 2 off
  6. Pinion cover
  7. Pinion cover seal
  8. Stud - pinion cover, 3 off
  9. Nut - pinion cover, 3 off
  10. Bracket - steering column to body
  11. Bolt - bracket to body, 2 off
  12. Bolt - bracket to steering column, 4 off
