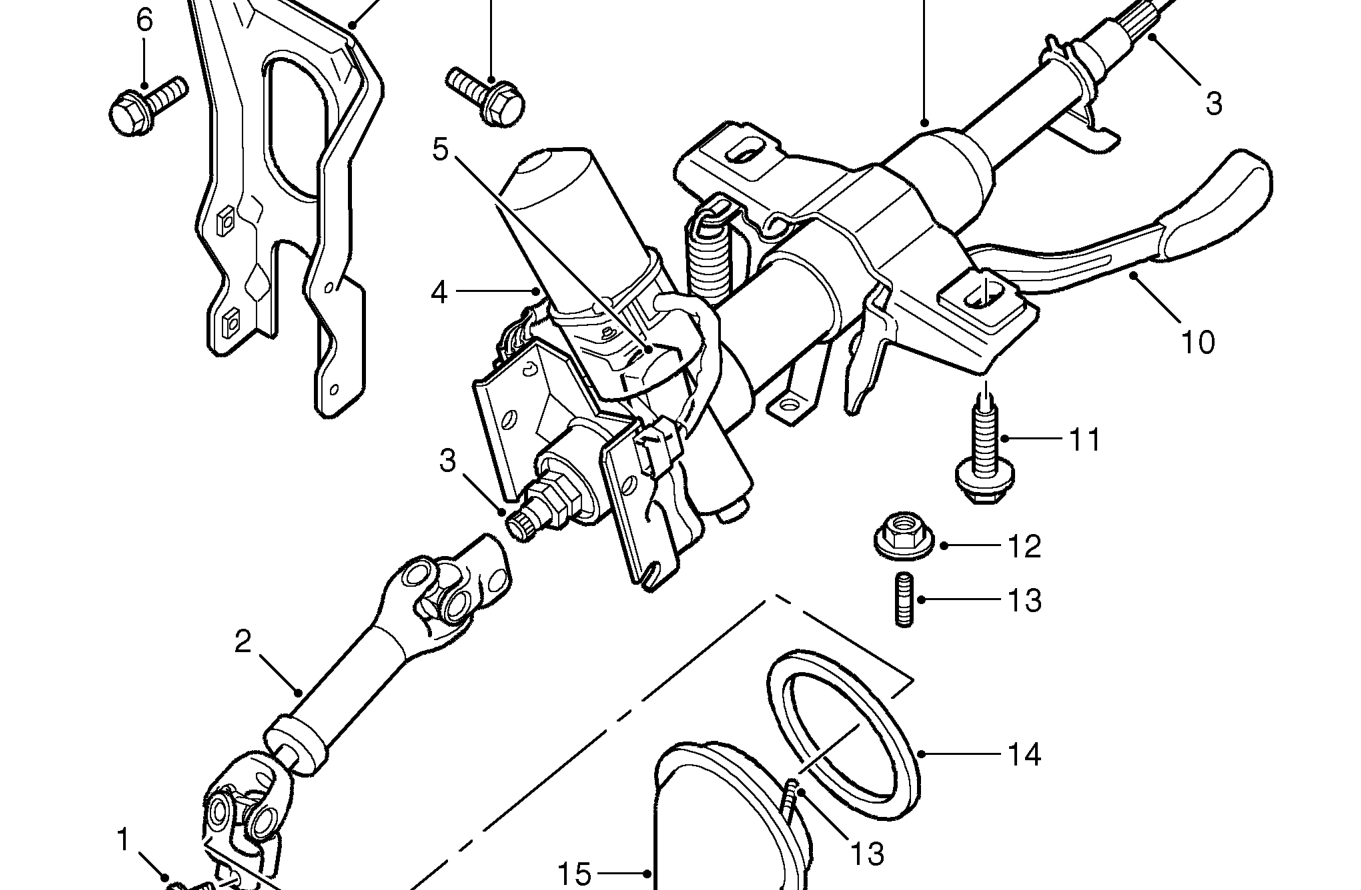

Steering column - with epas2 system (from 2000my)

STEERING COLUMN - WITH EPAS2 SYSTEM (FROM 2000MY)

WARNING: The steering column is not serviceable. A damaged column must be renewed otherwise crash performance may be affected.

1. Bolt - intermediate shaft, 2 off
2. Intermediate shaft
3. Steering shaft
4. EPAS steering motor
5. Torque sensor
6. Bolt - bracket to body, 2 off
7. Bracket - steering column to body
8. Bolt - bracket to steering column, 4 off
9. Steering column
10. Column tilt adjustment lever
11. Bolt - steering column to body
12. Nut - pinion cover, 3 off
13. Stud - pinion cover, 3 off
14. Pinion cover seal
15. Pinion cover
