DOOR GLASS - ADJUST

  1. For information on adjustment of the door glass, see hood seals and door glass - adjust. See Hood.

MIRROR - EXTERIOR - ELECTRIC

Service repair no - 76.10.57

Remove

  1. Remove front door casing. See this section.

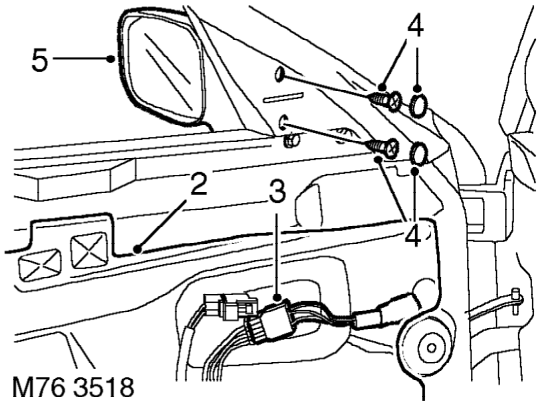

Mirror - exterior - electric – Remove front door casing. See this section.
  1. Release plastic sheet to access mirror multiplug.
  2. Disconnect mirror multiplug and attach draw string to mirror harness.
  3. Remove 2 screw caps and screws securing mirror.
  4. Remove exterior mirror.
  5. Remove draw string from mirror harness.

Refit

  1. Attach draw string to mirror harness and feed harness into door. Remove draw string from mirror harness.
  2. Position exterior mirror to door and secure with screws.
  3. Fit screw caps.
  4. Connect mirror multiplug.
  5. Secure plastic sheet in correct position.
  6. Fit front door casing. See this section.
