ELECTRIC WINDOW LIFT COMPONENTS

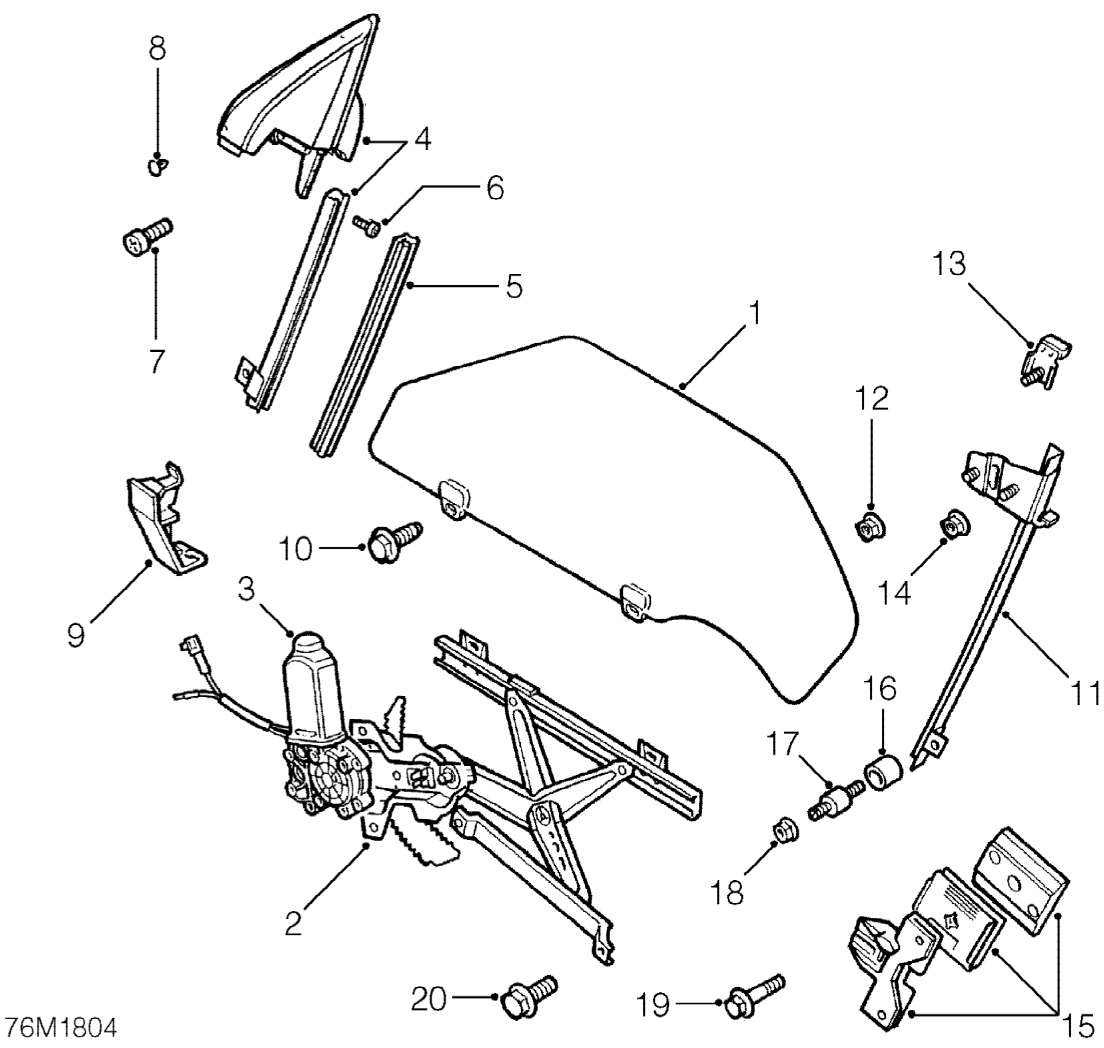

Electric window lift components
  1. Door glass
  2. Regulator
  3. Motor
  4. Cheater assembly
  5. Sash
  6. Screw - sash to cheater, 2 off
  7. Screw - cheater, 2 off
  8. Fastener - cheater
  9. Glass stop,
  10. Bolt - glass to regulator, 2 off
  11. Sash
  12. Nut - upper rail bracket, 2 off
  13. Stud bracket - glass retention
  14. Nut - glass retention
  15. Glass retention assembly
  16. Sleeve - sash adjuster, 2 off
  17. Screw - sash adjuster, 2 off
  18. Nut - sash adjuster, 2 off
  19. Bolt - glass retention
  20. Bolt - regulator, 2 off
