REMOTE DOOR HANDLE

Service repair no - 76.37.31

Remove

  1. Remove trim casing. See this section.

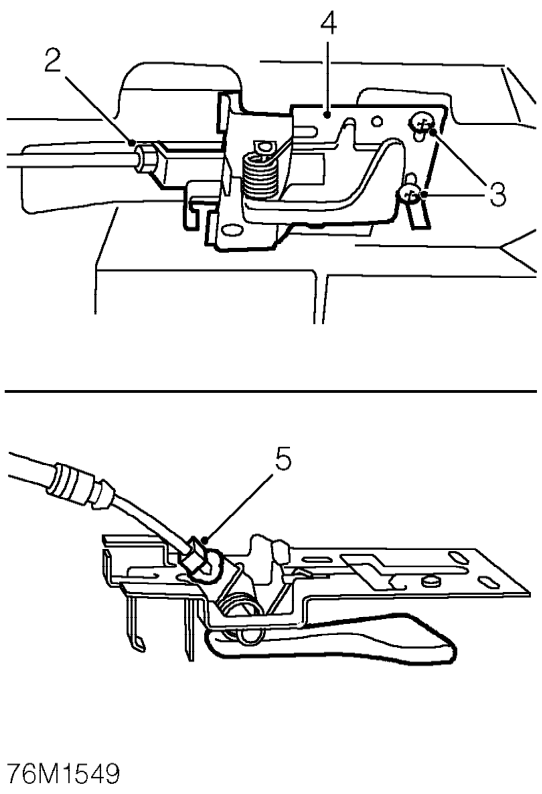

Remote door handle – Remove trim casing. See this section.
  1. Release latch operating cable from remote door handle abutment bracket.
  2. Remove 2 screws securing remote door handle.
  3. Release remote door handle from door by sliding in a forward direction.
  4. Release clip securing latch operating cable to remote door handle, remove remote door handle.

Refit

  1. Fit latch operating cable to remote door handle and secure with clip.
  2. Position remote door handle to door and secure with screws.
  3. Secure latch operating cable to remote door handle abutment bracket.
  4. Fit trim casing. See this section.

PRIVATE LOCK

Service repair no - 76.37.39

Remove

  1. Remove trim casing. See this section.
  2. Carefully peel back plastic sheet to allow access to inner door.

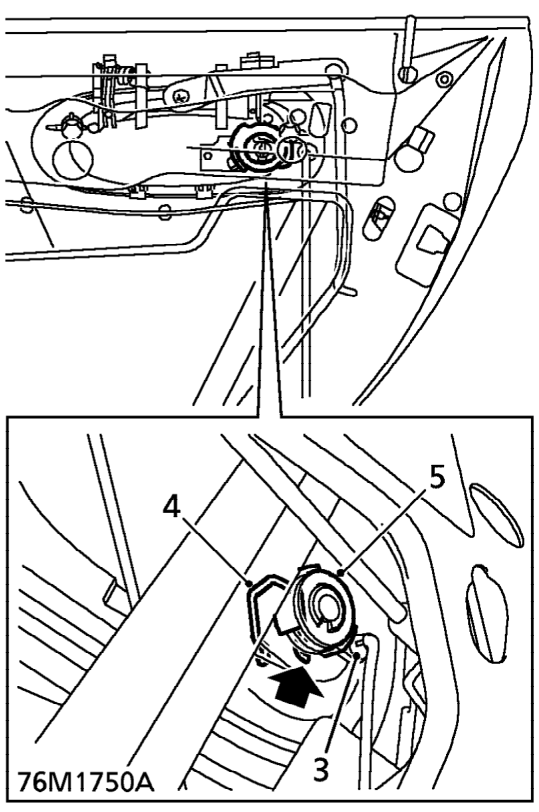

Private lock – Carefully peel back plastic sheet to allow access to inner door.
  1. Unclip link rod from lock.
  2. Release spring clip from lock.
  3. Remove private lock.

Refit

  1. Fit lock to handle and secure with spring clip.
  2. Engage link rod to lock.
  3. Position plastic sheet and press into place.
  4. Fit trim casing. See this section.
