Cooling systemExpansion tank

EXPANSION TANK

Service repair no - 26.15.01

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

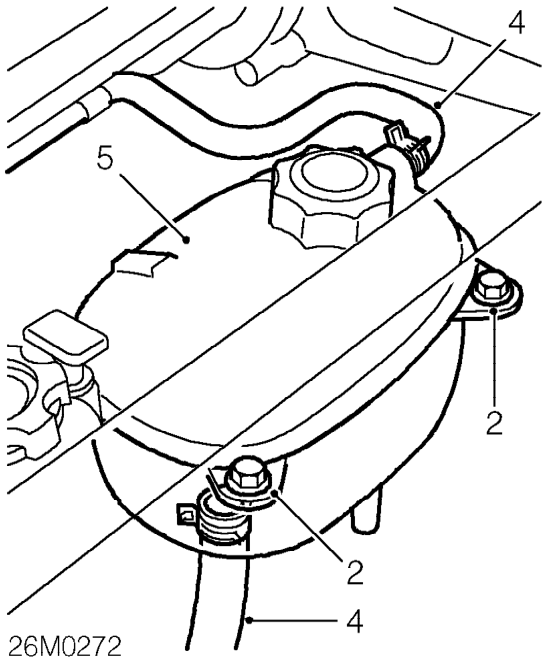

Expansion tank – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Remove 2 bolts securing tank to body.
  2. Position container to catch spillage.
  3. Release 2 hoses from tank and allow to drain.
  4. Remove expansion tank.

Refit

  1. Fit tank.
  2. Connect coolant hoses to tank and secure clips.
  3. Position tank to body, fit and tighten bolts to 5 Nm.
  4. Top-up cooling system. See MAINTENANCE.
  5. Fit engine compartment access panel. See BODY, Exterior fittings.

RADIATOR FAN AND MOTOR

Service repair no - 26.25.23

Remove

  1. Remove front bumper valance. See BODY, Exterior fittings.

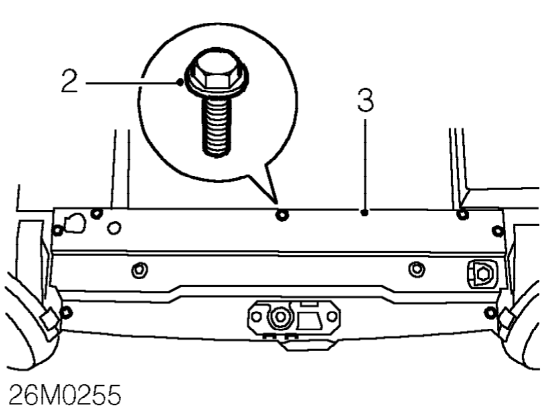

Radiator fan and motor – Remove front bumper valance. See BODY, Exterior fittings.
  1. Remove 9 bolts securing bonnet locking panel.
  2. Position panel aside.

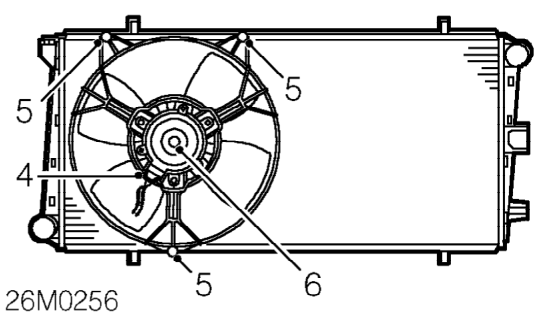

Radiator fan and motor – Position panel aside.
  1. Disconnect multiplug from fan.
  2. Remove 3 nuts securing fan cowl to radiator.
  3. Remove fan assembly.

Refit

  1. Fit fan assembly and tighten nuts to 3 Nm.
  2. Connect multiplug.
  3. Position bonnet locking panel and tighten bolts to 10 Nm.
  4. Fit front bumper valance. See BODY, Exterior fittings.
