ENGINE COMPARTMENT ACCESS PANEL

Service repair no - 76.11.05/99

Remove

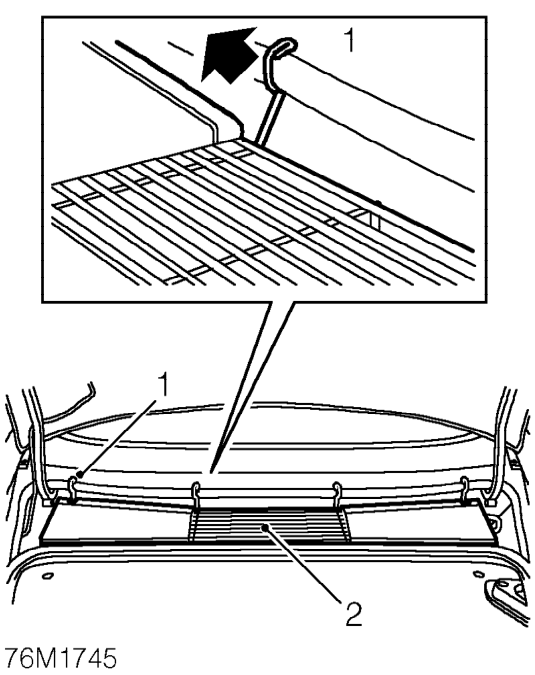

Engine compartment access panel – Service repair no - 76.11.05/99
  1. Release 4 retaining clips along front edge of closing panel by pulling each clip away from the seal and lifting upwards.
  2. Remove panel. Do not carry out further dismantling if component is removed for access only.
  3. Remove 6 screws securing LH plate to panel, remove plate.
  4. Remove 3 screws securing RH plate to panel, remove plate.

Rebuild

  1. Fit RH plate to panel and secure with screws.
  2. Fit LH plate to panel and secure with screws.

Refit

  1. Fit closing panel and secure.

PANEL - FRONT UNDERBELLY - CENTRE

Service repair no - 76.10.50

Remove

  1. Raise vehicle on a 2 post ramp.

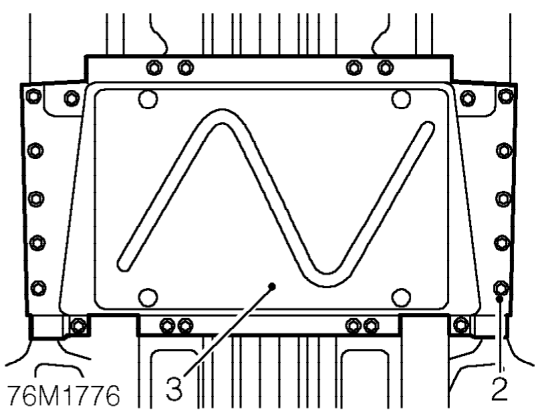

Panel - front underbelly - centre – Raise vehicle on a 2 post ramp.
  1. Remove 22 bolts securing underbelly panel to floorpan.
  2. Remove underbelly panel.

Refit

  1. Position underbelly panel to floorpan and tighten bolts to 22 Nm.
  2. Lower vehicle.
