BUMPER VALANCE - FRONT

Service repair no - 76.22.72

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Bumper valance - front – Raise front of vehicle.

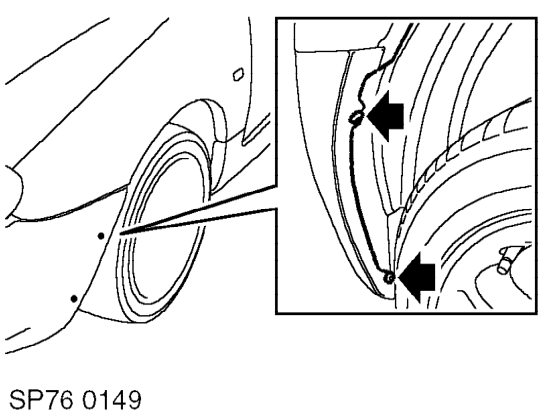

  1. Remove 2 screws securing each end of bumper valance to wheel arch liners.
  2. Remove 2 screws securing each end of bumper valance to front wing.
Bumper valance - front – Remove 2 screws securing each end of bumper valance to front wing.

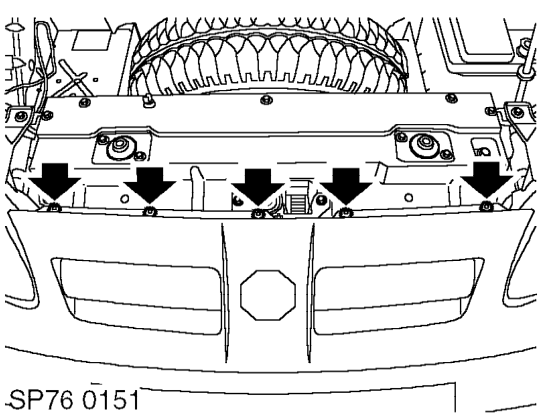

  1. Remove 5 screws securing bumper valance to bonnet locking panel.
Bumper valance - front – Remove 5 screws securing bumper valance to bonnet locking panel.

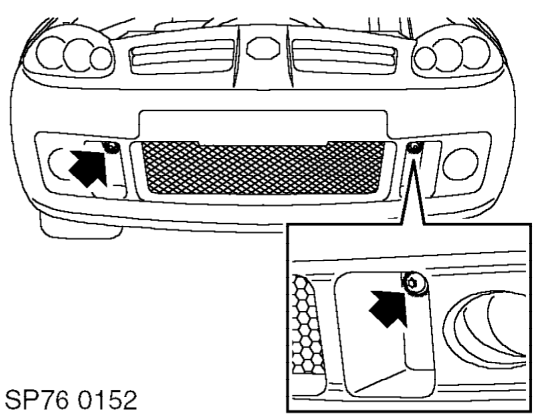

  1. Remove 2 Torx bolts securing bumper valance to bumper armature.
  2. Disconnect fog/driving lamp multiplugs and remove front bumper valance.

NOTE: Do not carry out further dismantling if component is removed for access only.

Bumper valance - front – Disconnect fog/driving lamp multiplugs and remove front bumper valance.

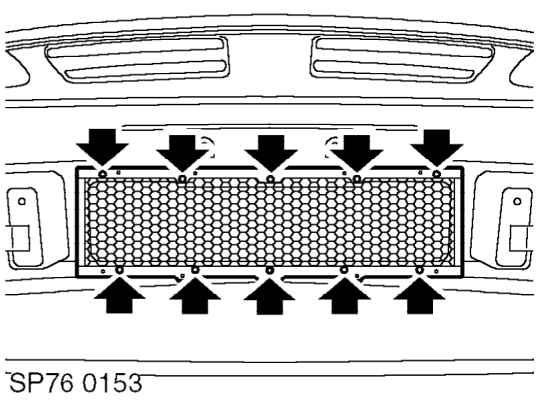

  1. Remove 10 screws securing bumper valance grille and remove grille.
  2. Remove bumper valance badge.
