MG TF Factory Workshop Manual (2002-2005)18 · Body
18 · Body & interior

Bonnet locking platform - r/r access

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Exterior fittings › Bonnet locking platform - r/r access
BodyBonnet locking platform - r/r access · page 1 of 3

BONNET LOCKING PLATFORM - R/R ACCESS

Service repair no - 76.16.22/99

Remove

  1. Remove front bumper valance. See this section.

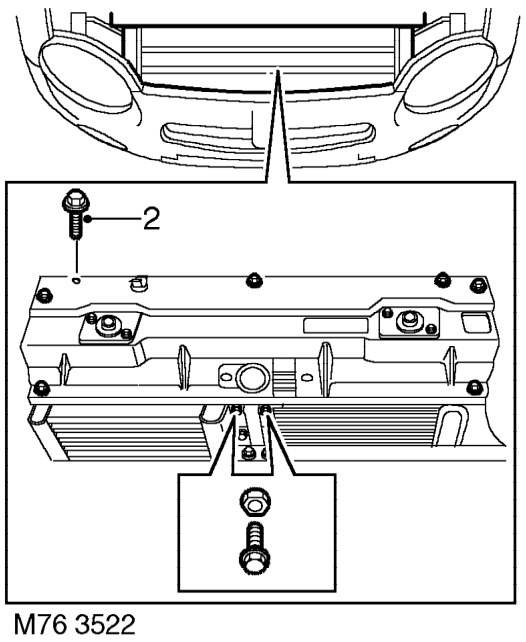

Bonnet locking platform - r/r access – Remove front bumper valance. See this section.
  1. Remove 7 bolts and 2 nuts and bolts securing bonnet locking platform. Release bonnet locking platform from 4 location pegs.
  2. Disconnect bonnet cable from bonnet catch and remove bonnet locking platform.

Refit

  1. Position bonnet locking platform and connect bonnet cable to bonnet catch.
  2. Fit bonnet locking platform and engage platform in location pegs. Fit nuts and bolts and tighten to 10 Nm.
  3. Fit front bumper valance. See this section.

BONNET RELEASE CABLE

Service repair no - 76.16.29

Remove

  1. Remove headlamp assembly. See ELECTRICAL, Repairs.

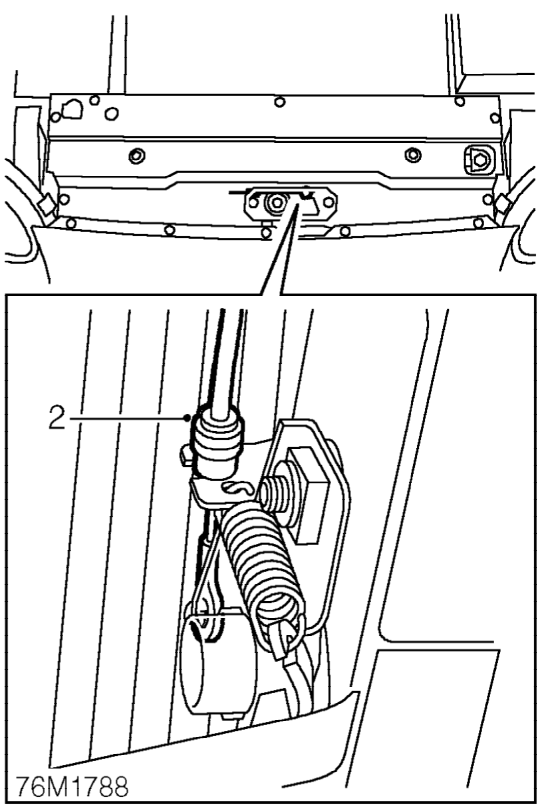

Bonnet release cable – Remove headlamp assembly. See ELECTRICAL, Repairs.
  1. Release cable from bonnet lock plate.
