AIR VENT - SIDE

Service repair no - 76.55.19

Remove

  1. Apply protective tape to paintwork around side air vent.

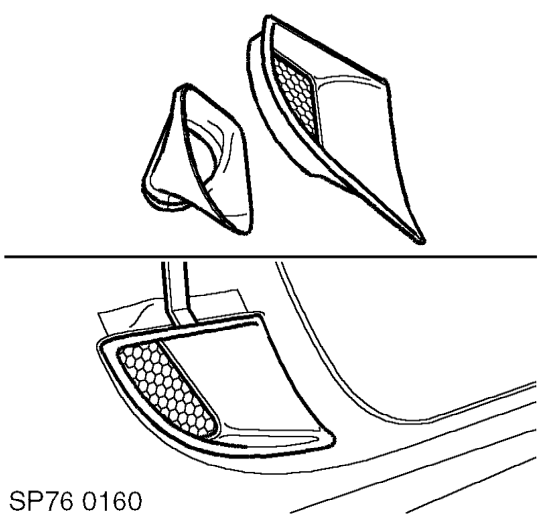

Air vent - side – Apply protective tape to paintwork around side air vent.
  1. Using a thin flat blade in the position shown release side air vent from body.
  2. Release side air vent from adhesive tape and remove side air vent.
  3. Release and remove air intake duct.

Refit

  1. Clean side air vent and mating face of body.
  2. Position air intake duct and secure to body.
  3. Remove adhesive backing from side air vent retaining tape.
  4. Position side air vent to air intake duct, align retaining pegs and secure side air vent to body.
  5. Remove protective tape, clean and inspect paintwork.
