PRIVATE LOCK - BOOT LID

Service repair no - 76.19.10

Remove

  1. Open boot lid.

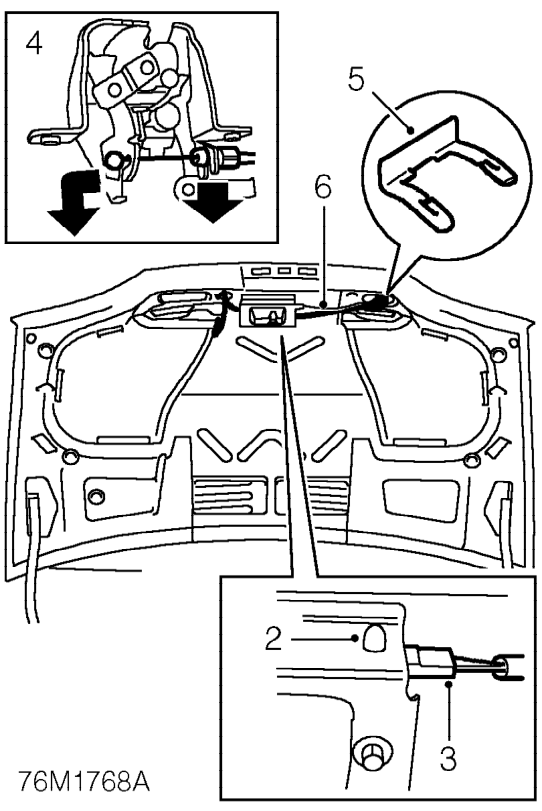

Private lock - boot lid – Open boot lid.
  1. Release multiplug from boot lid latch, bracket.
  2. Disconnect multiplug.
  3. Disconnect release cable from boot lid latch.
  4. Remove clip securing lock to boot lid.
  5. Remove lock assembly from boot lid.

Refit

  1. Position lock to boot lid and secure with clip.
  2. Connect release cable to boot lid latch.
  3. Connect multiplug.
  4. Secure multiplug to boot lid latch, bracket.

BOOT LID LATCH

Service repair no - 76.19.11

Remove

  1. Open boot lid.

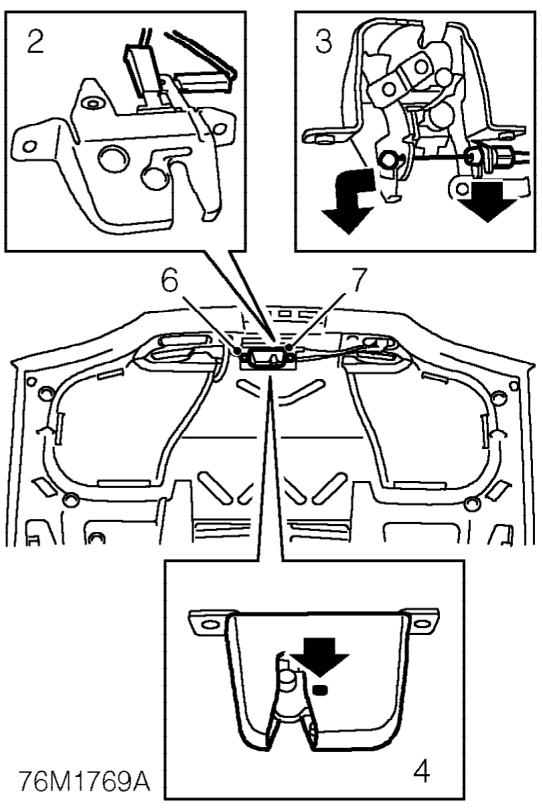

Boot lid latch – Open boot lid.
  1. Disconnect 2 Lucars and multiplug from latch assembly.
  2. Release cable from latch.
  3. Release clip and remove cover from latch.
  4. Mark position of latch to boot for reference.
  5. Remove 2 bolts securing latch to boot lid.
  6. Remove latch assembly.

Refit

  1. Position latch to boot lid using reference marks and tighten bolts to 10 Nm.
  2. Connect cable and secure to latch.
  3. Connect Lucars and multiplug, and fit latch cover.
  4. Check latch operation and if necessary, adjust boot lid striker. See this section.
