MG TF Factory Workshop Manual (2002-2005)07 · Cooling system
07 · Engine

Engine compartment cooling fan

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Engine compartment cooling fan
Cooling systemEngine compartment cooling fan

ENGINE COMPARTMENT COOLING FAN

Service repair no - 26.25.39 Service repair no - 26.25.39/20 A/C fitted

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.

3. Models with A/C: Remove alternator. See ELECTRICAL, Repairs.

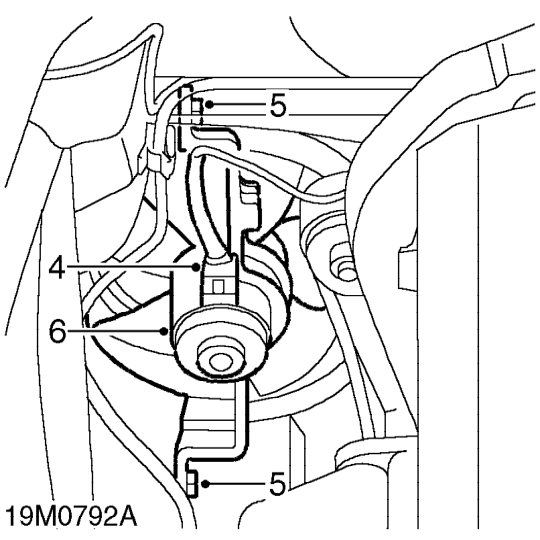

Engine compartment cooling fan – 3. Models with A/C: Remove alternator. See ELECTRICAL, Repairs.
  1. Disconnect multiplug from motor.
  2. Remove 2 nuts securing fan assembly to body.
  3. Remove fan assembly.

Refit

  1. Fit fan assembly and tighten nuts to 9 Nm.
  2. Connect multiplug.

3. Models with A/C: Fit alternator. See ELECTRICAL, Repairs.

  1. Fit engine cover. See ENGINE, Repairs.
  2. Connect battery earth lead.

ENGINE COMPARTMENT AMBIENT AIR TEMPERATURE (AAT) SENSOR

Service repair no - 26.25.40

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

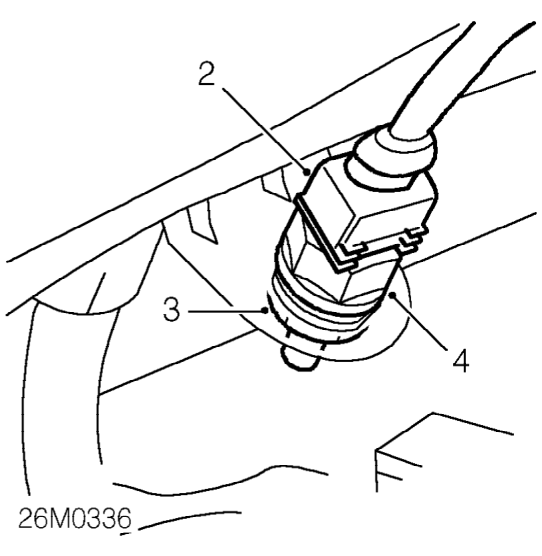

Engine compartment ambient air temperature (aat) sensor – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Disconnect AAT sensor multiplug.
  2. Remove nut securing AAT sensor to bracket.
  3. Remove AAT sensor.

Refit

  1. Fit AAT sensor and secure with nut.
  2. Connect multiplug.
  3. Fit engine compartment access panel. See BODY, Exterior fittings. compartment
