THERMOSTAT - MPi

Service repair no - 26.45.09

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See Adjustments.
Thermostat - mpi – Drain cooling system. See Adjustments.

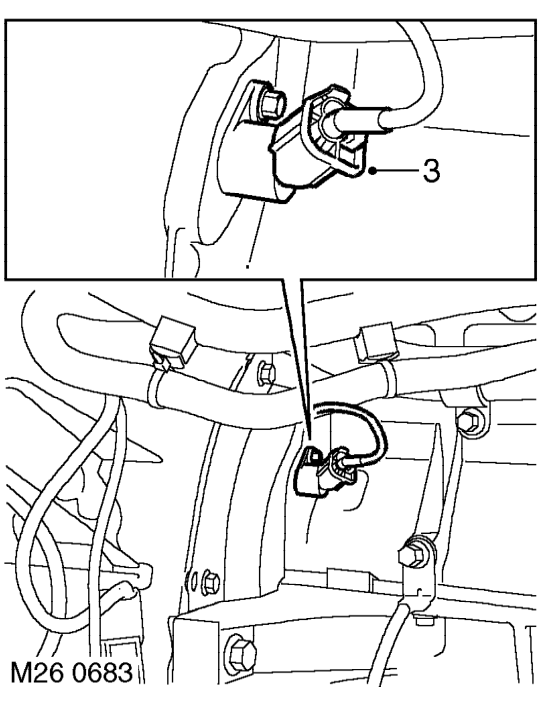

  1. Disconnect multiplug from CKP sensor.
Thermostat - mpi – Disconnect multiplug from CKP sensor.

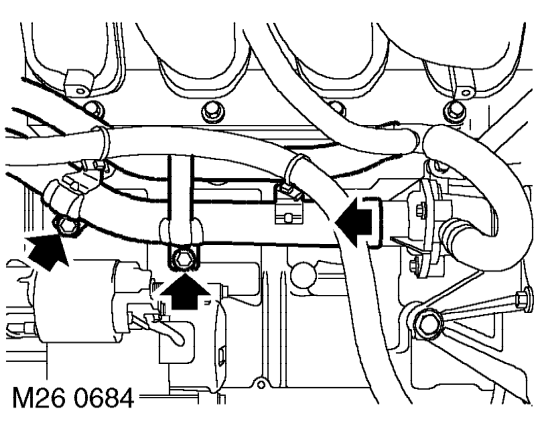

  1. Remove 2 bolts securing coolant rail to cylinder block.
  2. Release coolant rail from thermostat housing.
  3. Lower vehicle.
  4. Remove engine compartment access panel. See BODY, Exterior fittings.
Thermostat - mpi – Remove engine compartment access panel. See BODY, Exterior fittings.

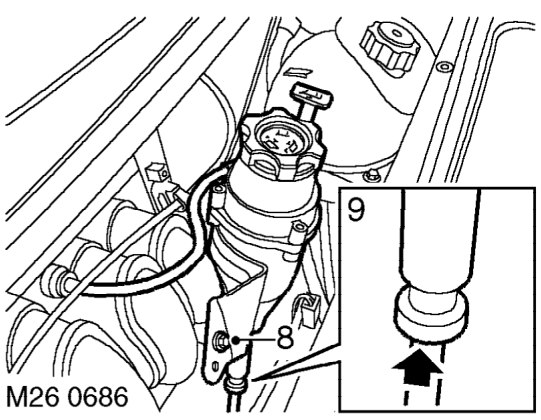

  1. Remove bolt securing dipstick tube to inlet manifold.
  2. Depress collar and remove upper part of dipstick tube.
Thermostat - mpi – Depress collar and remove upper part of dipstick tube.

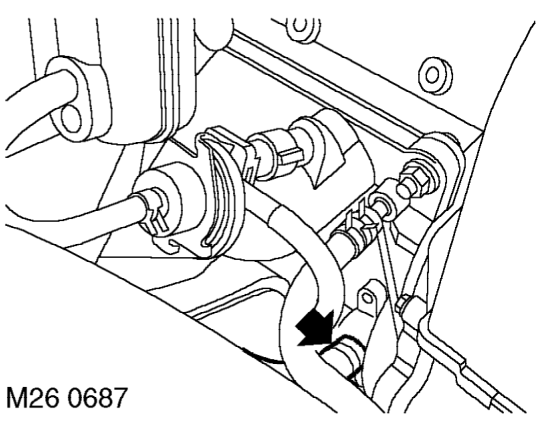

  1. Release clip and disconnect heater hose from thermostat housing.
