GASKET - EXHAUST MANIFOLD TO FRONT PIPE - VVC

Service repair no - 30.10.26

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access cover. See BODY, Exterior fittings.
Gasket - exhaust manifold to front pipe - vvc – Remove engine compartment access cover. See BODY, Exterior fittings.

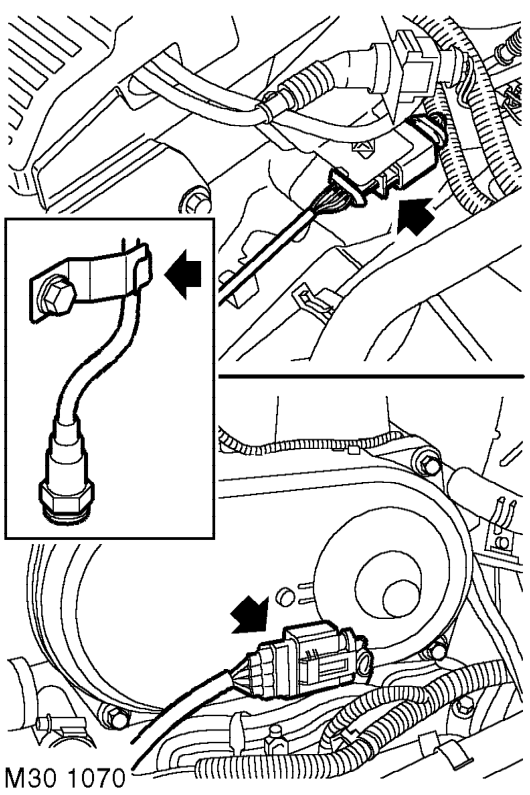

  1. Rotate HO2S multiplug through 90° to release from mounting.
  2. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Release HO2S lead from clip.
Gasket - exhaust manifold to front pipe - vvc – Release HO2S lead from clip.

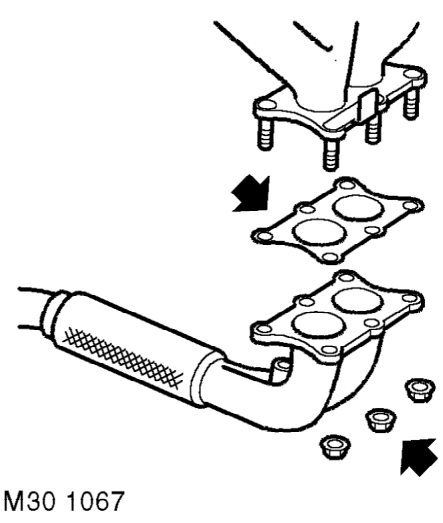

  1. Remove 6 nuts, release front pipe from exhaust manifold and discard gasket.

Refit

  1. Clean front pipe and manifold mating faces.
  2. Fit new gasket and tighten nuts securing front pipe to manifold to 50 Nm.
  3. Fit HO2S lead to clip.
  4. Secure HO2S multiplug to mounting.
  5. Remove stand and lower vehicle.
  6. Fit engine compartment access cover. See BODY, Exterior fittings.
  7. Connect battery earth lead.
