MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket - exhaust manifold - MPi

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Gasket - exhaust manifold - MPi
Manifolds and exhaust systemGasket - exhaust manifold - MPi · page 1 of 2

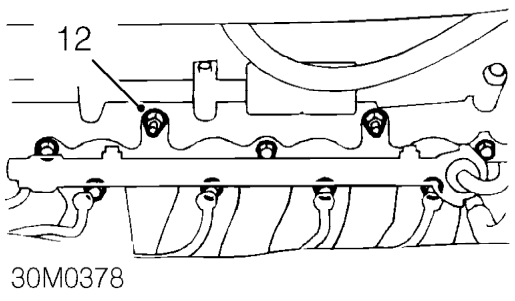

Diagram
  1. Remove 2 nuts and 7 bolts securing inlet manifold to cylinder head.
  2. Remove inlet manifold from cylinder head studs.
  3. Remove and discard gasket seal from inlet manifold.

Refit

  1. Clean manifold to cylinder head mating faces.
  2. Fit new gasket seal to cylinder head.
  3. Fit inlet manifold to studs.

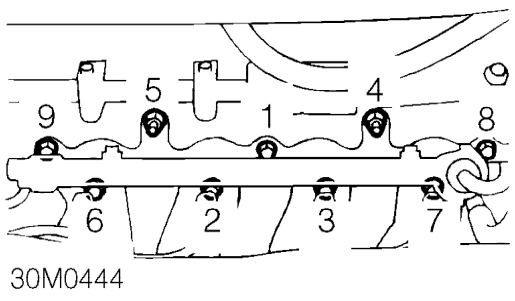

Fit inlet manifold to studs.
  1. Fit nuts and bolts securing inlet manifold to cylinder head and tighten in sequence shown to 25 Nm.
  2. Align support bracket and tighten bolt to 25 Nm.
  3. Secure fuel feed hose to fuel filter pipe.
  4. Secure fuel return hose to return pipe.
  5. Connect air intake temperature sensor multiplug.
  6. Connect injector harness multiplug.
  7. Connect coolant hose to inlet manifold and secure clip.
  8. Fit manifold chamber gasket. See this section.
  9. Refill cooling system. See COOLING SYSTEM, Adjustments.

GASKET - EXHAUST MANIFOLD - MPi

Service repair no - 30.15.12

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.
  3. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove LH road wheel.
Gasket - exhaust manifold - mpi – Remove LH road wheel.

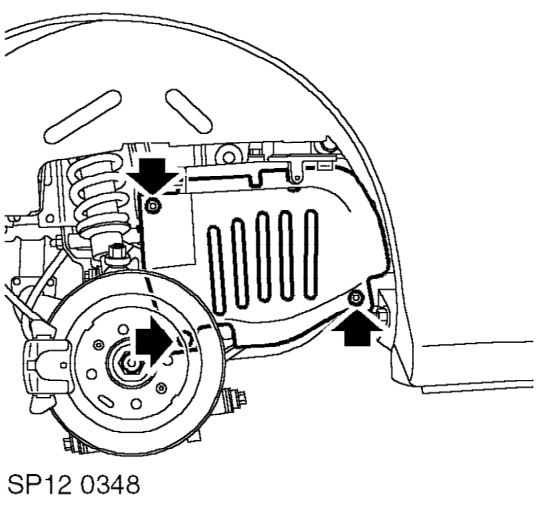

  1. Remove 2 scrivets and 1 Torx screw closing splash panel and remove panel.
Gasket - exhaust manifold - mpi – Remove 2 scrivets and 1 Torx screw closing splash panel and remove panel.

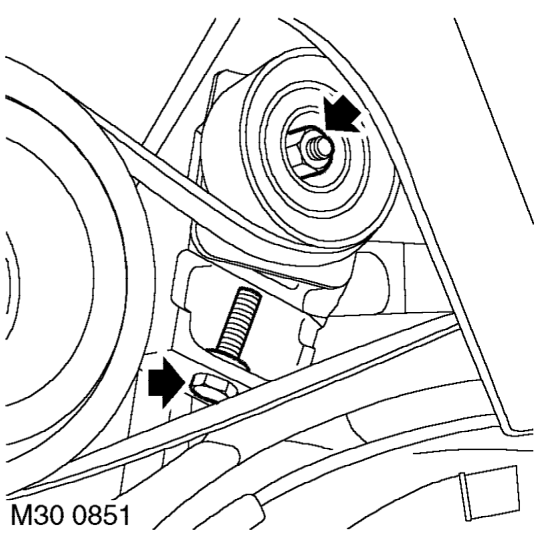

  1. Release tension on alternator drive belt tensioner and remove drive belt.
