MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket - exhaust manifold - MPi (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemGasket - exhaust manifold - MPi · page 2 of 2
Diagram

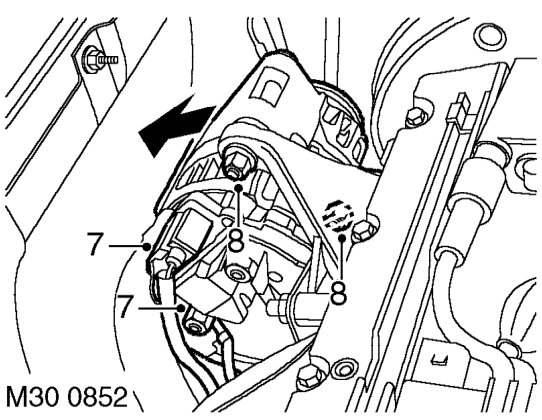

  1. Remove nut securing alternator lead and release lead, disconnect alternator multiplug.
  2. Remove alternator top bolt and loosen lower bolt.
  3. Position alternator forwards to access alternator bracket.
Position alternator forwards to access alternator bracket.

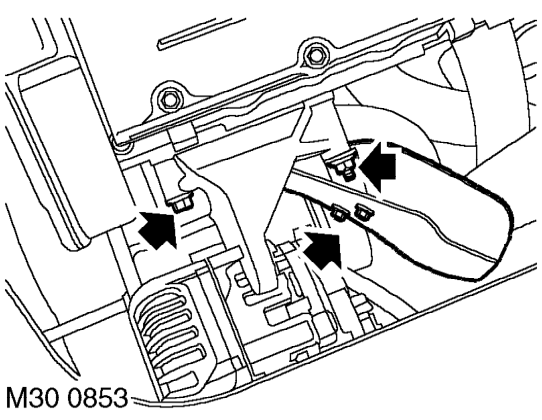

  1. Remove nut and bolt securing alternator bracket.
  2. Remove 2 bolts securing alternator heat shield and remove heat shield.
  3. Remove alternator bracket.
Remove alternator bracket.

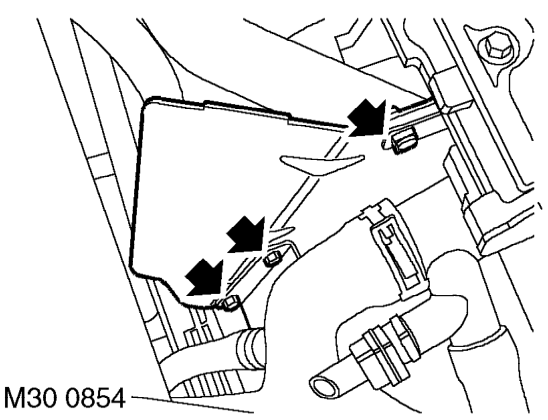

  1. Remove 3 bolts securing coolant hose heat shield and remove heat shield.
Remove 3 bolts securing coolant hose heat shield and remove heat shield.

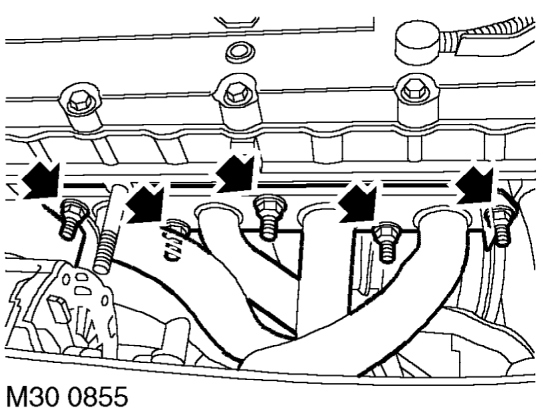

  1. Remove 5 flange nuts securing exhaust manifold to cylinder head.
  2. Position manifold aside, remove and discard gasket.
