Manifolds and exhaust systemExhaust mountings · page 1 of 2
  1. Position throttle housing to inlet manifold chamber, align multiplug bracket, fit and lightly tighten bolts.

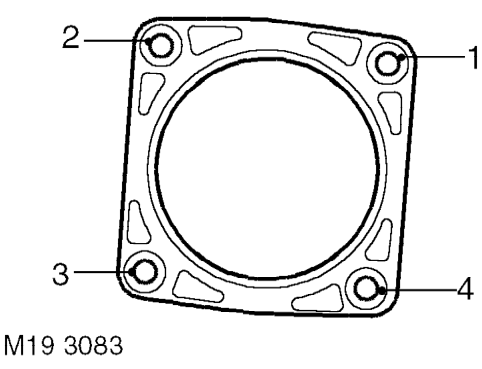

Position throttle housing to inlet manifold chamber, align multiplug bracket, fit and ligh
  1. Tighten bolts in the sequence shown using the following procedure: i. Tighten to 4 Nm. ii. Back off one flat. iii. Tighten to 9 Nm.
  2. Connect MAP sensor multiplug.
  3. Connect multiplug to IACV.
  4. Connect hose to IACV.
  5. Connect engine breather hose to camshaft cover and secure with clip.
  6. Connect throttle cable to cam, abutment bracket and clips on inlet manifold chamber.
  7. Connect EVAP canister hose to inlet manifold chamber and secure with clip.
  8. Connect brake servo vacuum hose to inlet manifold chamber.
  9. Position dipstick/filler tube, align support bracket to inlet manifold, fit and tighten bolt to 10 Nm.
  10. Secure brake servo vacuum hose in clip on dipstick/oil filler tube.
  11. Position cross bracing, fit nuts and new bolt and tighten to 25 Nm.
  12. Fit engine compartment access cover. See ENGINE, Repairs.
  13. Fit engine compartment access panel. See BODY, Exterior fittings.
  14. Connect battery earth lead.

EXHAUST MOUNTINGS

Service repair no - 30.20.06

Remove

  1. Remove silencer heat shield. See this section.

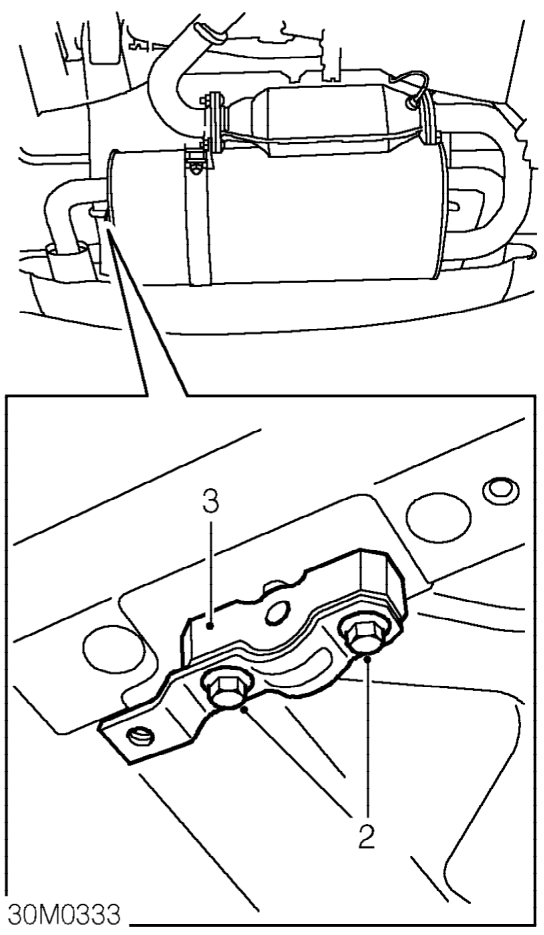

Exhaust mountings – Remove silencer heat shield. See this section.
  1. Remove 4 bolts securing LH and RH exhaust mountings.
  2. Remove brackets and rubbers.
