MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Exhaust mountings (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemExhaust mountings · page 2 of 2

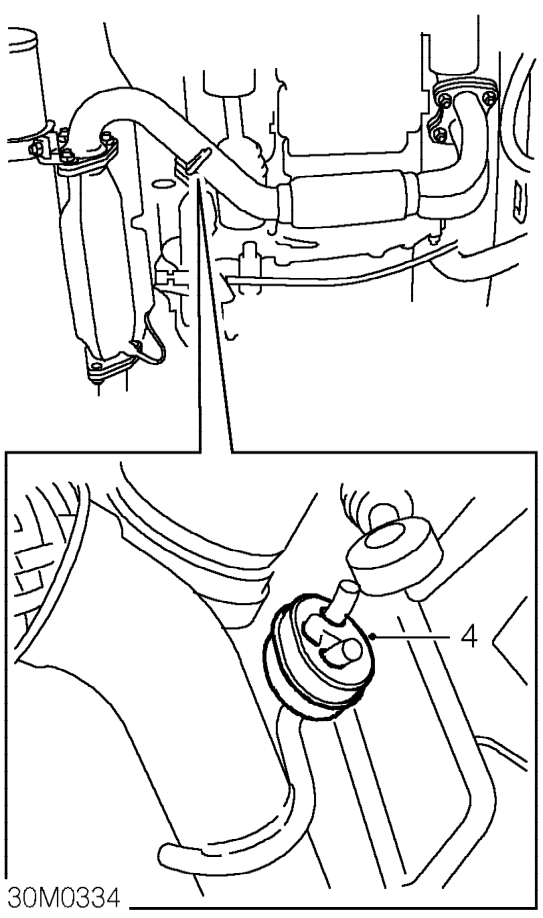

Diagram
  1. Remove mounting rubber securing front pipe to subframe.

Refit

  1. Fit mounting rubber securing front pipe to subframe.
  2. Fit LH and RH mounting rubbers and brackets, fit bolts and tighten to 25 Nm.
  3. Fit silencer heat shield. See this section.
