MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket(s) - manifold chamber - VVC (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemGasket(s) - manifold chamber - VVC · page 2 of 2
Diagram

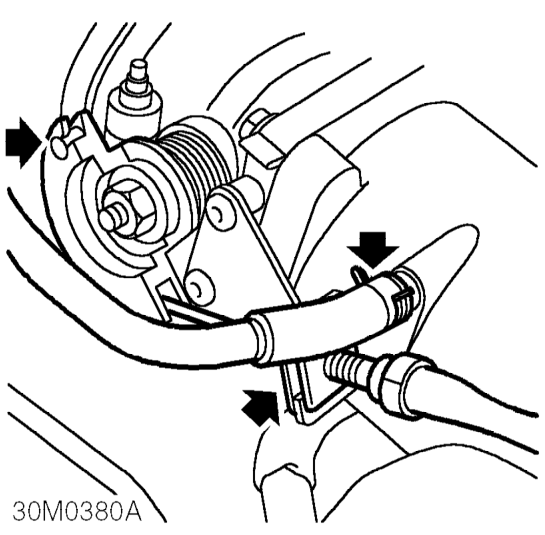

  1. Release cable adjusting nut from abutment bracket.
  2. Release inner cable from throttle cam.
  3. Release clip and disconnect hose, EVAP canister to inlet manifold chamber.
Release clip and disconnect hose, EVAP canister to inlet manifold chamber.

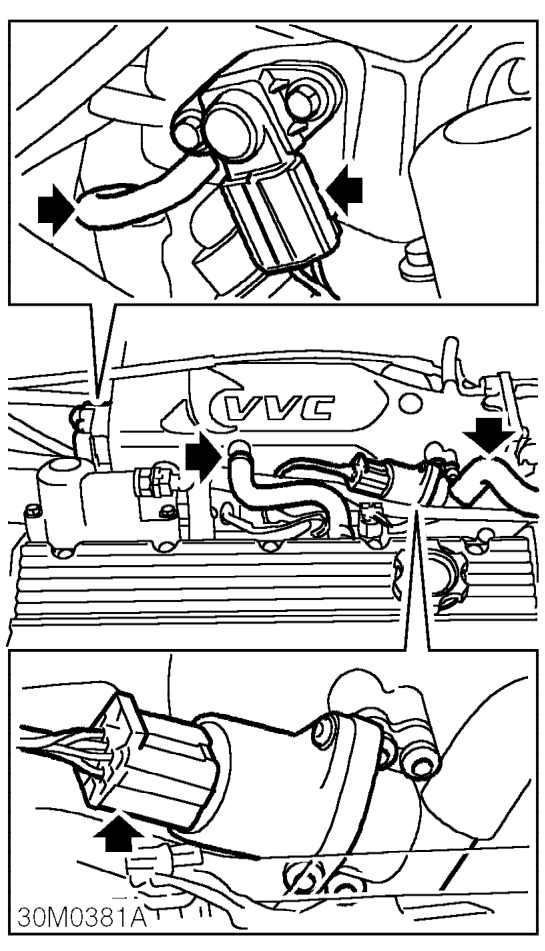

  1. Release clip and disconnect engine breather hose from camshaft cover.
  2. Disconnect hose from IACV.
  3. Disconnect multiplug from IACV.
  4. Disconnect vacuum hose connecting fuel pressure regulator to inlet manifold chamber.
  5. Disconnect MAP sensor multiplug.
Disconnect MAP sensor multiplug.

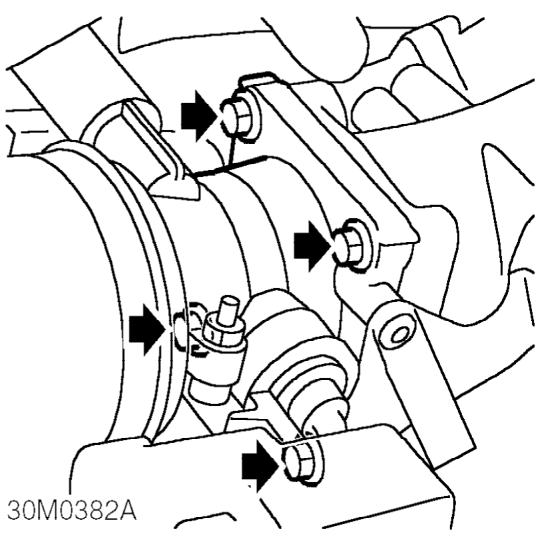

  1. Remove 4 bolts securing throttle housing to inlet manifold chamber. Position multiplug bracket aside and remove throttle housing.
Remove 4 bolts securing throttle housing to inlet manifold chamber. Position multiplug bra

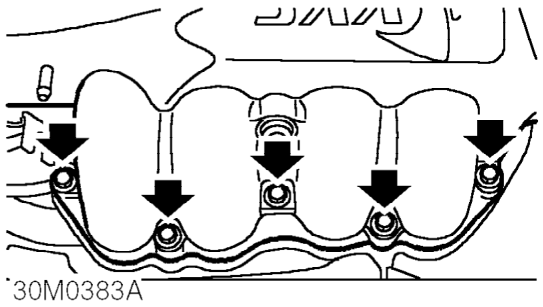

  1. Remove 5 bolts securing inlet manifold chamber to inlet manifold and remove inlet manifold chamber.
  2. Remove and discard gasket from inlet manifold chamber.
  3. Remove and discard ’O’ ring seal from throttle housing.

Refit

  1. Clean inlet manifold chamber and inlet manifold mating faces.
  2. Fit new ’O’ ring seal to throttle housing.
  3. Position new gasket seal to inlet manifold and fit inlet manifold chamber.
  4. Fit and tighten bolts securing inlet manifold chamber to inlet manifold to 25 Nm.
