MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket - inlet manifold - VVC (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemGasket - inlet manifold - VVC · page 2 of 2

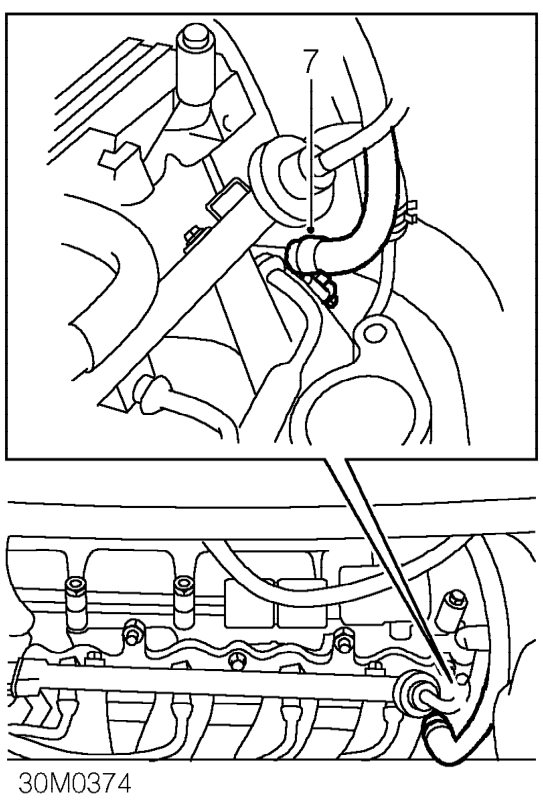

Diagram

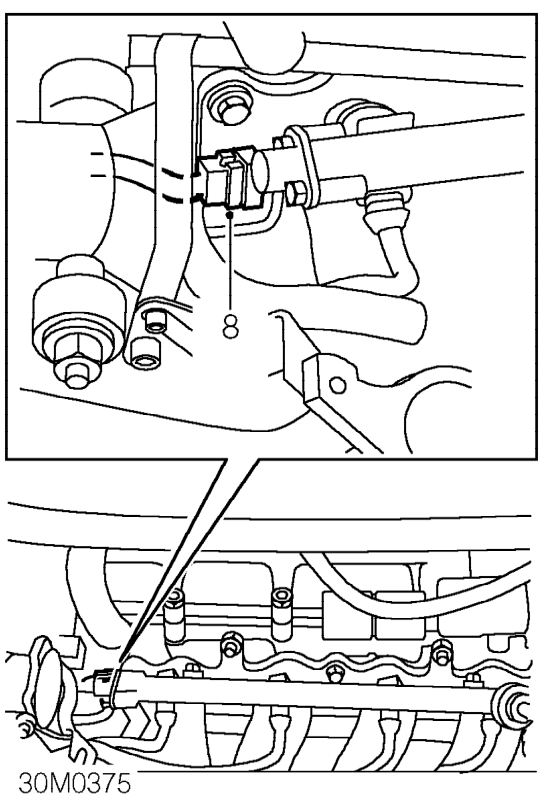

  1. Loosen clip and disconnect coolant hose from inlet manifold.
Loosen clip and disconnect coolant hose from inlet manifold.

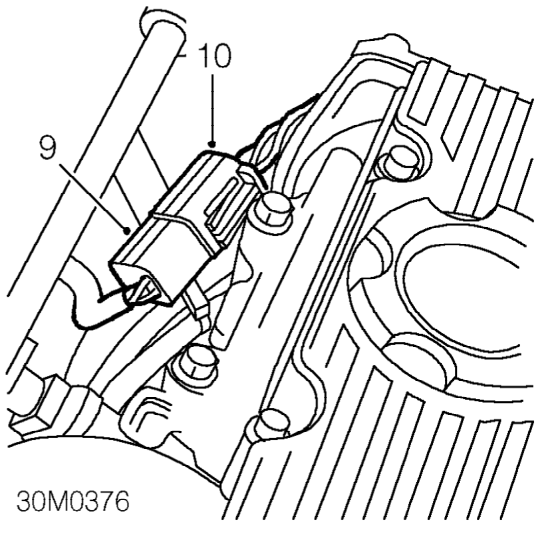

  1. Disconnect air intake temperature sensor multiplug from manifold.
Disconnect air intake temperature sensor multiplug from manifold.
  1. Disconnect injector harness multiplug.

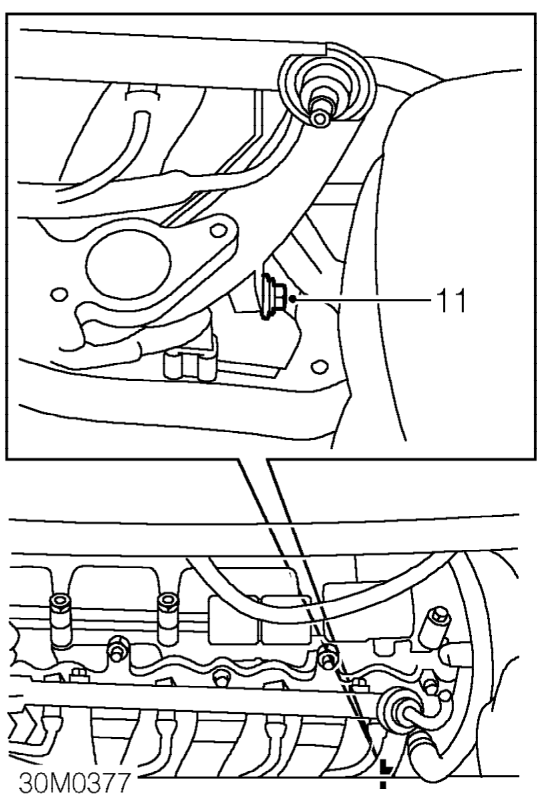

  2. Release injector multiplug from bracket.
Release injector multiplug from bracket.
  1. Remove bolt securing inlet manifold to support bracket.
