Manual gearboxGearbox - manual - remove for access & refit

GEARBOX - MANUAL - REMOVE FOR ACCESS & REFIT

Service repair no - 37.20.02.99

Remove

  1. Disconnect battery earth lead.
  2. Remove engine and gearbox assembly. See ENGINE, Repairs.
  3. Drain gearbox oil.
Gearbox - manual - remove for access & refit – Drain gearbox oil.

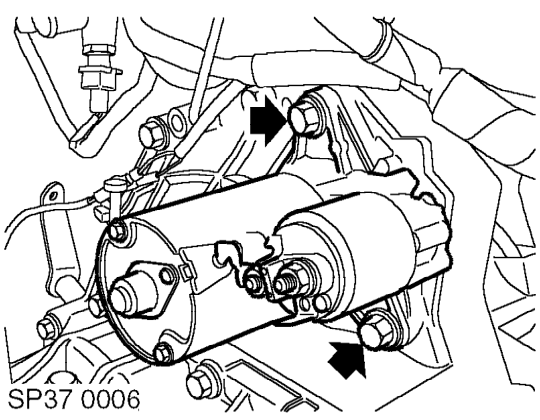

  1. Remove 2 nuts and bolts securing starter motor, remove starter motor and collect rear closing plate.
Gearbox - manual - remove for access & refit – Remove 2 nuts and bolts securing starter motor, remove starter motor and collect rear clos

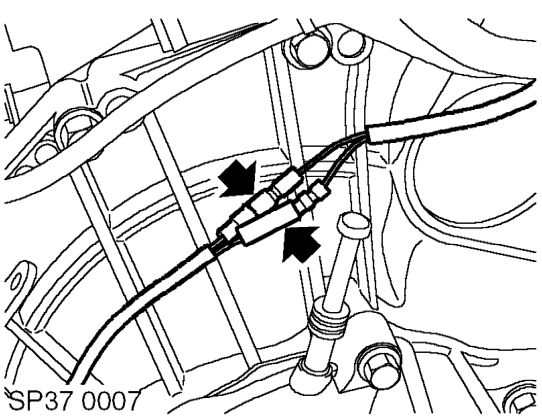

  1. Disconnect reverse light switch connectors.
Gearbox - manual - remove for access & refit – Disconnect reverse light switch connectors.

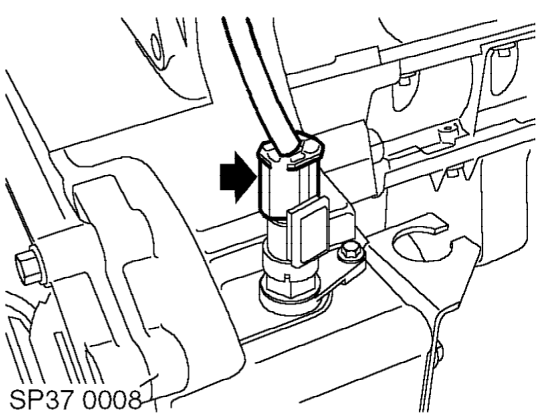

  1. Disconnect multiplug from road speed transducer.
Gearbox - manual - remove for access & refit – Disconnect multiplug from road speed transducer.

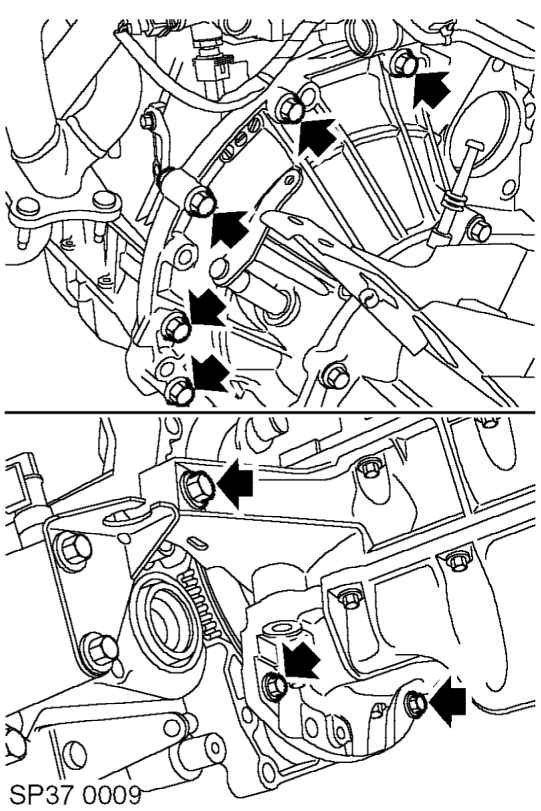

  1. Remove 5 bolts and 3 nuts and bolts securing gearbox to engine.
  2. Collect front closing plate.
  3. With assistance remove gearbox from engine.
