Selector shaft oil seal

Refit

1. Clean mating faces of gearbox and engine, ensure locating dowels are fitted.
2. With assistance, fit gearbox, locate on dowels and secure to engine.
3. Position front closing plate.
4. Fit nuts and bolts securing gearbox to engine. Tighten gearbox to engine bolts to 80 Nm. Gearbox to sump bolts to 45 Nm.
5. Connect multiplug to transducer.
6. Connect reverse lamp switch wires.
7. Clean starter motor and mating face on gearbox housing.
8. Position rear closing plate.
9. Position starter motor to gearbox, fit and tighten nuts and bolts to 80 Nm.
10. Fill gearbox with oil.
11. Fit engine and gearbox assembly. See ENGINE, Repairs.
12. Connect battery earth lead.

SELECTOR SHAFT OIL SEAL

Service repair no - 37.23.10

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

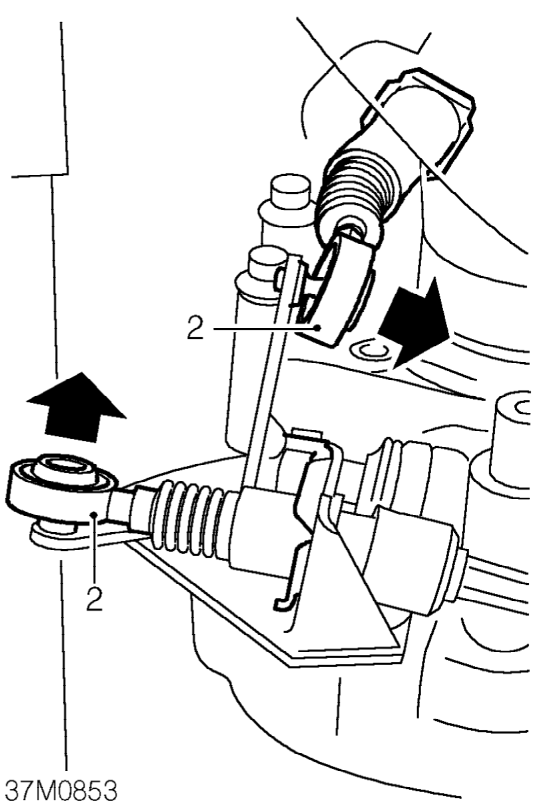

2. Release 2 gear change cables from selector linkage.
